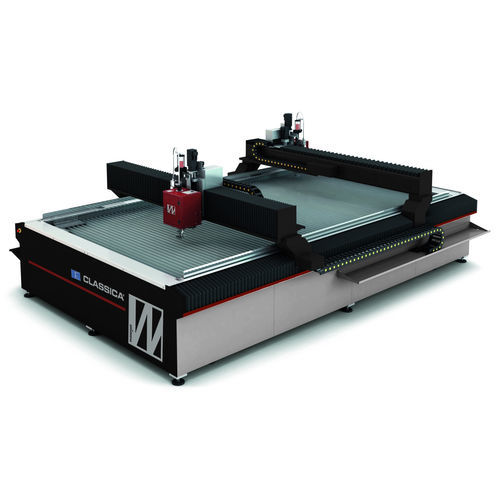

Water-jet cutting machine CLASSICA CLD 510for metalfor plasticsfor stone
Add to favorites
Compare this product
Characteristics
- Technology
- water-jet
- Material
- for metal, for plastics, for stone, for glass, for ceramics
- Control type
- CNC
- Applications
- for industrial applications
- Configuration
- gantry type, dual-bridge, 3-axis
- Other characteristics
- automatic, rack-and-pinion
- X travel
2,000 mm (79 in)
- Y travel
3,000 mm (118 in)
- Cutting speed
Max.: 30,000 mm/min (19.685 in/s)
Min.: 0 mm/min (0 in/s)
- Z travel
200 mm (8 in)
- Repeatability
0.05 mm (0.002 in)
Description
3-4-5 axis CNC gantry technology stainless steel tank, helical rack and pinion motion system and automatic lubrication.
Net Cutting Area : X = 2.000 mm (6' 1/2')
Y = 3.000 mm (10')
Z = 200 mm (8')
Inner Table Working Area : 2.300 mm x 4.400 mm
(7’ 1/2 x 15')
Overall Dimensions : 4.500 mm x 2.300 mm x h 1.800 mm
(15’ x 7 1/2 x h 6’)
Rapid Speed : 0 - 30 mt / min
(0 - 100’ / min)
Weight : 4.000 Kg
(8.900 lb)
Positioning Accuracy : ± 0,075 mm
(± 0,003”)
Repeatability : ± 0,05 mm
(± 0,002”)
Ball Bar Ø 300 mm (12”) : ± 0,075 mm
(± 0,003”)
EDGE 5 axis ±55°con I.T.C (Intelligent Tapering Control) technology and exclusive Touch Wave™ sensor for accurate continuous position calibration.
