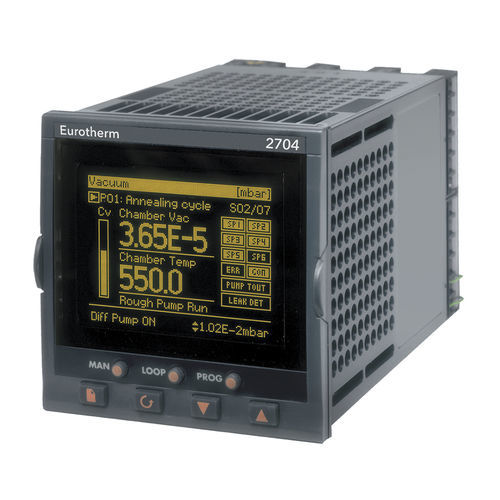

Temperature controller with LCD display 2704

programmableprocessconfigurable

The 2704 is a highly accurate and stable process controller available in a single, dual or triple loop format. Features include setpoint programming and a comprehensive selection of math and logic functions. Description High performance measurement - the best in class control Flexible I/O - meets many diverse requirements Feature rich - more than just a temperature controller Application specific functions - simplifying complex applications Graphical soft writing - easy to be creative and find solutions to complex problems Its user interface incorporates a bright dot matrix display, providing extreme flexibility and ease of use. It is a highly configurable product offering many features previously only found in programmable logic controllers (PLC). This enables systems to be implemented integrating the process control and logic functions of a machine – simplifying system complexity and reducing total system costs. Configuration is achieved either via the front panel interface of using the iTools configuration software. High Precision Process Input If you cannot measure accurately, you cannot control accurately. The 2704 offers typical resolution of 0.25uV making it ideal for applications such as semiconductor, vacuum heat treatment and research applications. All thermocouple input types are created for, as are Pt100 resistance thermometers and linear input types such as 0-10Vdc and 4-20mA. Four wire Pt100, and Pt125 measurement is also possible using a module specially designed for high accuracy metrology applications. Setpoint Programmer Ideal for atmosphere or vacuum furnaces and environmental chambers 60 programs 3 profiled setpoints/program 600 segments
