Chemical product hose CorroflonEPDMsilicone rubberPTFE
Add to favorites
Compare this product
Characteristics
- Use
- for chemical products
- Material
- EPDM, silicone rubber, PTFE, polypropylene
- Applications
- for chemical applications, protection, process
- Other characteristics
- flexible, anti-static, vacuum, braided, PTFE-lined
- Inner diameter
Max.: 150 mm
(5.906 in)Min.: 15 mm
(0.591 in)- Outer diameter
Max.: 154 mm
(6.063 in)Min.: 16.1 mm
(0.634 in)- Pressure
Max.: 41 bar
(594.655 psi)Min.: 6 bar
(87.023 psi)- Temperature
Max.: 260 °C
(500 °F)Min.: -73 °C
(-99.4 °F)
Description

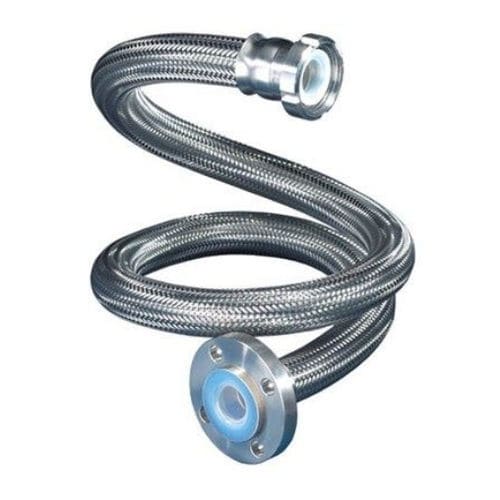

A fluoroplastic hose with a flexible convoluted PTFE liner. Corroflon has shallow convolutions which minimize the restriction in flow rates, with external wire reinforcement to ensure full vacuum and kink resistance in process applications.
Features and benefits
Natural or anti-static patented PTFE liner
The shallow convoluted liner design delivers exceptional flexibility while minimizing restriction in flow rate
Vacuum and kink resistant
High temperature and pressure capability
Chemical resistant
PTFE lined and non-lined end fittings
Range of braid, cover and external protection options available
