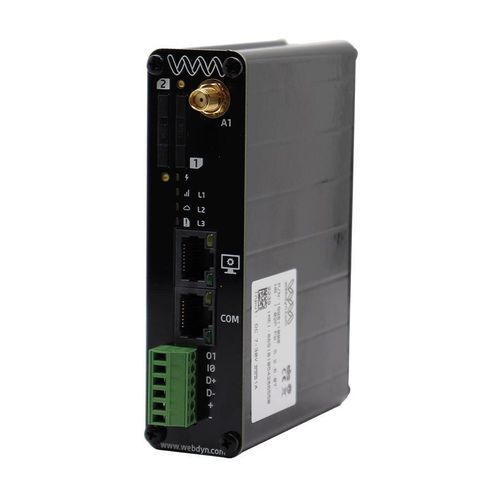

Data Terminal Unit communication router EasyTunnel

wirelessdataall-in-one

Description
EasyTunnel is an all-in-one industrial IoT gateway providing multiple physical interfaces and embedded TITAN V6 firmware. It supports serial gateway functions, datalogging, an embedded webserver and a range of secure/cloud connectivity options (MQTT(s), FTP(s), DynDNS/No‑IP, IPSec) to accelerate integration in Industry 4.0, smart building and smart metering projects.

Main features — Hardware

• Cellular: 4G/3G/2G with SMA antenna
• 1x digital input and 1x digital output
• RS485 and RS232 serial interfaces (RJ45 for RS232)
• Ethernet configuration port (RJ45)
• DC input: 7 to 30 V
• Dual SIM (2x Mini SIM 1.8V/3V, SIM tray)
• DIN-rail mounting, 4 status LEDs

Main features — Software

• Serial gateway and protocol conversion
• Datalogger with local storage
• Embedded webserver for local configuration
• MQTT(s) client and FTP(s) support
• DynDNS / No‑IP and IPSec for secure remote access
• SMS control and remote management
• Modbus RTU/TCP support
• TITAN V6 firmware included (Modbus, MQTT, IPSec, logging, webserver)

Strengths & Benefits

• Quick onboarding and configuration with over 50 application notes
• Complete MTX-Titan software feature set included
• I/O management for simple sensor/actuator integration
• Dual SIM for cellular redundancy
• Compact DIN-rail form factor for cabinet installation

Applications

• Industry 4.0: machine connectivity and data collection
• Smart Building & Home automation (BMS integration)
• Metering and remote monitoring

Radio / Regional specifications
EUROPE:
LTE FDD: B1, B3, B5, B7, B8, B20
WCDMA: B1, B5, B8
GSM: B3, B8

AUSTRALIA / LATAM:
LTE FDD: B1, B2, B3, B4, B5, B7, B8, B28
LTE TDD: B40
WCDMA: B1, B2, B5, B8
GSM: B2, B3, B5, B8

Interfaces

• 4G/3G/2G cellular (SMA antenna)
• 1x digital input
• 1x digital output
• Ethernet configuration port (RJ45)
• RS485 / RS232 serial ports
• Dual SIM
• 4x operating / status LEDs

Connectors

• 1x SMA for cellular antenna
• RJ45 for RS232 serial
• RJ45 for Ethernet configuration
• 6-way plug-in terminal block for DC input, RS485 and digital I/O
• 2x Mini SIM (1.8V/3V) with SIM tray

Technical specifications

• Included firmware/software: TITAN V6 (Modbus, MQTT, IPSec, logger, webserver)
• Cellular: 4G / 3G / 2G (regional band variants listed above)
• Serial: RS485 and RS232 (RJ45 for RS232)
• Ethernet: configuration port (RJ45)
• I/O: 1 digital input, 1 digital output
• SIM: Dual SIM (2x Mini SIM, 1.8V/3V, SIM tray)
• LEDs: 4 status/operating LEDs
• Power input: 7 to 30 V DC
• Mounting: DIN-rail
• Operating temperature: -40 to 85 °C
• Dimensions: 113.2 x 30.5 x 90.2 mm
• Weight: 195 g
• Security & connectivity: IPSec, DynDNS/No‑IP, SMS control, FTP(s), MQTT(s)
• Protocols: Modbus RTU/TCP
