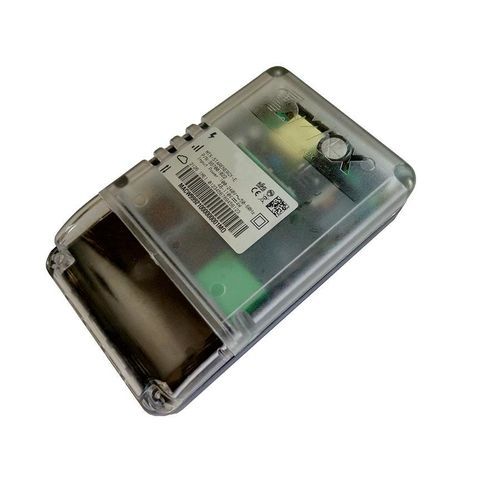

Data Terminal Unit modem MTX StarEnergy-E

wirelessdatacellular

Product Overview
The MTX-StarEnergy-E is an industrial modem designed for the electric metering market. It provides protocol encapsulation and gateway functions to read IEC 60870-5-102 meters via IP ↔ RS232/RS485, and supports prioritized connectivity over 2G/3G/4G-LTE and CSD call fallback. The device also monitors meter presence and issues alarms on non-detection.

Main Features

• Hardware: 4G/3G/2G cellular modem (4G Cat.1)
• Hardware: USB 2.0 (Type A)
• Hardware: RS232/RS422/RS485 serial interface (RJ45)
• Hardware: Wide-range AC & DC power input
• Hardware: Legacy communications support (CSD, SMS)
• Hardware: DIN-rail and triangle wall mounting with fastening triangle
• Hardware: 4x status LEDs

• Software: Built-in web server for management
• Software: Serial gateway (IP ↔ RS232/RS485)
• Software: SNMPv3 support
• Software: IEC 60870-5-102 encapsulation
• Software: Integrated firewall and watchdog
• Software: SMS remote control
• Software: VPN management

Specifications (radio, data & messaging)
MTX-StarEnergy-E 4G Cat.1
LTE FDD: B1/B3/B5/B7/B8/B20; WCDMA: B1/B5/B8; GSM/EDGE: B3/B8
LTE FDD: 10 Mbps (DL) / 5 Mbps (UL)
DC-HSDPA+: 42 Mbps (DL) / 5.75 Mbps (UL); WCDMA: 384 Kbps (DL) / 384 Kbps (UL)
EDGE: 296 Kbps (DL) / 236.8 Kbps (UL); GPRS: 107 Kbps (DL) / 85.6 Kbps (UL)
CSD data transmission up to 9.6 kbps, V.110, non-transparent
SMS: text and PDU mode support

Interfaces

• 4G/3G/2G cellular connectivity
• 1x RS232/RS422/RS485 (4-wire) serial port
• RTC with supercapacitor backup
• Supercapacitor for power-fault alarm

Connectors

• SMA F antenna connectors for 4G/3G/2G
• USB Type A connector (USB 2.0)
• RJ45 for serial (RS232/422/485, 4-wire)
• miniSIM slot
• Terminal block: power supply (AC: 2-way 3.5mm; DC: 2-way 3.5mm)

Strengths & Benefits

• Wide-range AC and DC power input for flexible deployment
• Fast installation and rollout (DIN-rail or wall mount)
• Secure communications with firewall, VPN and SNMPv3
• Easy status monitoring via LEDs and web interface

Applications

• Designed for electric metering and remote reading of utility meters

Technical specifications

• 4x status LEDs
• DIN-rail and triangle wall mounting
• Power input: AC 100-240 VAC; DC 48-110 VDC
• Operating temperature range: -25°C to 70°C
• Temperature limit: -40°C to 85°C
• Storage temperature: -40°C to 85°C
• Dimensions: 175 x 100 x 45 mm
• Weight: 300 g
• Certifications: RED 2014/53/EU, RoHS, ISO 9001
