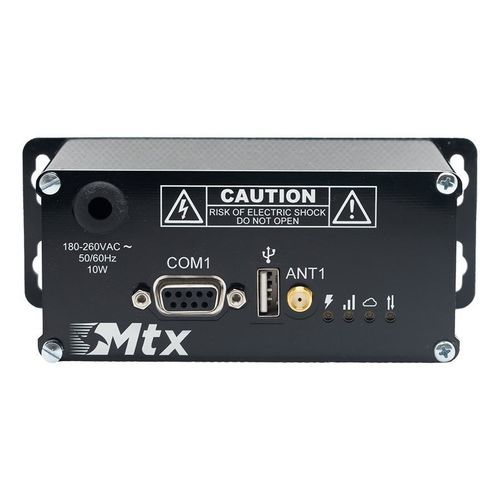

Data modem MTX-StarEnergy-McellularGSM3G
Add to favorites
Compare this product
Characteristics
- Type
- data, cellular
- Network
- LTE, RS232, RS485, GPRS, GSM, 4G, 2G, RF, HSUPA, USB, EDGE, 3G, HSDPA
- Application
- industrial, for M2M application, for IoT applications
- Mounting
- DIN rail, wall-mount
Description
Product overview
The MTX-StarEnergy-M is an industrial cellular modem designed for the electric metering market. It provides automatic SIM self-provisioning and dynamic operator selection based on signal quality. The device supports 4G/3G/2G connectivity, serial interfaces and direct 230V power input, and is suitable for installation in harsh environments.
Main Features
TITAN SOFTWARE
TITAN SOFTWARE included.
Strengths & Benefits
Applications
Specifications (summary table)
MTX-StarEnergy-M 4G
LTE FDD: B1/B3/B5/B7/B8/B20
WCDMA: B1/B5/B8
GSM: B3/B8
LTE FDD: Max 10 Mbps (DL) / Max 5 Mbps (UL)
DC-HSDPA: Max 42 Mbps (DL)
HSUPA: Max 5.76 Mbps (UL)
WCDMA: Max 384 Kbps (DL) / Max 384 Kbps (UL)
EDGE: Max 296 Kbps (DL) / Max 236.8 Kbps (UL)
GPRS: Max 107 Kbps (DL) / Max 85.6 Kbps (UL)
CSD data transmission up to 9.6 kbps, V.110, non-transparent
SMS: text and PDU mode support
Interfaces
Connectors
Characteristics / Technical specifications
The MTX-StarEnergy-M is an industrial cellular modem designed for the electric metering market. It provides automatic SIM self-provisioning and dynamic operator selection based on signal quality. The device supports 4G/3G/2G connectivity, serial interfaces and direct 230V power input, and is suitable for installation in harsh environments.
Main Features
- Hardware:
- 4G/3G connectivity
- USB 2.0
- RS232/422/485 serial port (DB9)
- 230V AC power input (85–260Vac)
- Legacy communication support (CSD/SMS)
- DIN-rail and wall mounting
- Rugged connectors (M12)
- 4 status LEDs
- Software:
- Embedded web server
- Serial gateway
- SNMPv3
- TACACS+
- Firewall
- Watchdog
- SMS control
- VPN management
TITAN SOFTWARE
TITAN SOFTWARE included.
Strengths & Benefits
- Automatic SIM self-provisioning: device detects operator and autoconfigures (APN, sockets)
- Automatic operator selection based on measured signal quality for roaming SIMs
- Direct 230V AC power input without external power supply
- Industrial-grade connectors and DIN-rail mounting for field deployment
Applications
- Designed for electric metering and smart grid communications
- Adapted to harsh environments: dust, vibration and impact
Specifications (summary table)
MTX-StarEnergy-M 4G
LTE FDD: B1/B3/B5/B7/B8/B20
WCDMA: B1/B5/B8
GSM: B3/B8
LTE FDD: Max 10 Mbps (DL) / Max 5 Mbps (UL)
DC-HSDPA: Max 42 Mbps (DL)
HSUPA: Max 5.76 Mbps (UL)
WCDMA: Max 384 Kbps (DL) / Max 384 Kbps (UL)
EDGE: Max 296 Kbps (DL) / Max 236.8 Kbps (UL)
GPRS: Max 107 Kbps (DL) / Max 85.6 Kbps (UL)
CSD data transmission up to 9.6 kbps, V.110, non-transparent
SMS: text and PDU mode support
Interfaces
- 4G/3G/2G cellular connectivity
- 1x RS232/422/485 (DB9)
- CSD call support
- 230Vac power input
Connectors
- SMA RF antenna connectors: 4G/3G/2G
- USB A type connector: USB 2.0
- DB9 F: RS232/422/485
- Terminal block: power supply (3-way plug-in 5 mm)
- Internal SIM card holder
Characteristics / Technical specifications
- 4x status LEDs
- DIN-rail / wall mounting
- Power input: 85Vac - 260Vac
- Operating temperature range: -40°C to 85°C
- Dimensions: 122 x 51 x 75 mm
- Weight: <500 g
