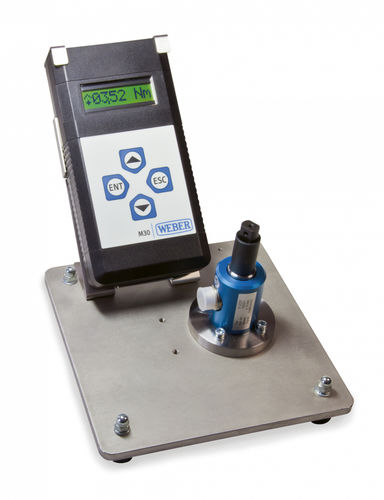

Dynamic torque sensor M30

staticrotaryRS-232

Product description
The M30 is a measuring amplifier designed to verify set torque values in screw-driving systems. It is compatible with static and dynamic sensors, including MDW torque/angle transducers and rotating transducers, and is suitable for use in screwing simulators and joint testing. Its compact size, low weight and battery operation make it well suited for mobile and on-site testing.

Features

• Up to 10 calibration parameter sets can be stored for different sensors
• Data logger storing up to 600 measured values with time and date
• High-speed acquisition: up to 1/1,000 sec. measurement rate
• External trigger input for synchronized control
• Battery operation (4 × AA) or optional AC adapter
• USB and RS-232 interfaces for data transfer and printout

Technical data Torque gauge M30
Dimensions: 40 / 100 / 200 mm (D / W / H)
Weight (without cables and batteries): 330 g
Operating temperature range: +5 °C to +45 °C
Protection class: IP 40
Technical changes reserved.

Characteristics / technical specifications

• Type: Measuring amplifier for torque verification in screw-driving systems
• Sensor compatibility: static sensors, dynamic sensors, MDW transducer, rotating transducers
• Calibration memory: up to 10 parameter sets
• Data logging capacity: up to 600 measured values (with time and date)
• Measurement speed: up to 1/1,000 sec.
• Trigger input: external trigger for control and synchronization
• Power supply: 4 × AA (Mignon) batteries or optional AC adapter
• Interfaces: USB and RS-232 for data transfer and printing
• Dimensions (D / W / H): 40 / 100 / 200 mm
• Weight: 330 g (without cables and batteries)
• Operating temperature: +5 °C to +45 °C
• Protection class: IP 40
