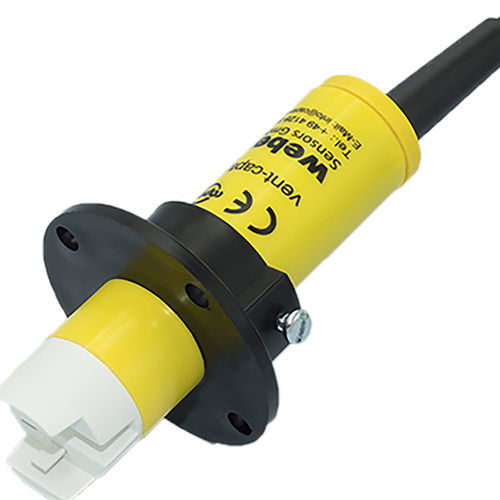

Calorimetric flow sensor vent-captor 3202.0Xvolumegasfor process monitoring
Add to favorites
Compare this product
Characteristics
- Technology
- calorimetric
- Type
- volume
- Applications
- gas, for process monitoring, OEM, rugged, HVAC, for cooling systems, for leak detection, for ambient air flow
- Other characteristics
- compact, high-precision, insertion, precision, electronic, economical, digital output, stainless steel
Description
Switching range: 0.3 m/s to 30 m/s or 2 m/s to 50 m/s,
continuously adjustable
Pressure: atmospheric (with flange) or max. 1 bar (with PG21)
Operating voltage: 24 VDC
Options:
NMA: extended housing length (NMA)
3205.xx: stainless steel housing / pressure up to 10 bar
S101: medium temperature -30 °C up to +50 °C
S104: with halogen free cable
S106: medium temperature up to +80 °C
S118: with binder plug
S123: Burn-In, medium temperature -40 °C up to +70 °C, with halogen free cable
