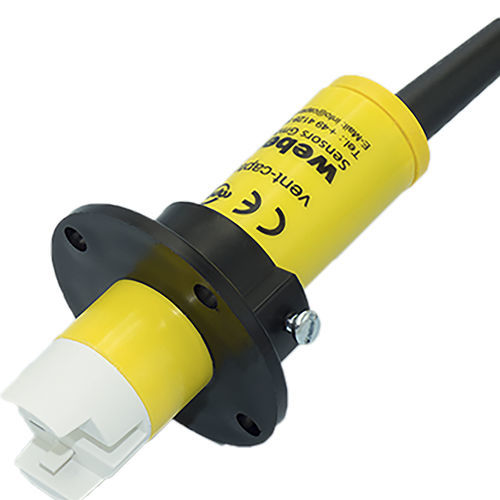

Pt100 flow meter / mass / electronic / calorimetric
vent-captor 3202.3x/xx

{{requestButtons}}

Characteristics

  • Technology:

    mass, calorimetric, electronic, Pt100

  • Fluid:

    for air, for oxygen, for gas and steam, for dust-laden gases

  • Other characteristics:

    4-20 mA, compact, precision, electronic, IP64, with LED display, plastic, flange, insertion, in metering tube, rugged, corrosion-resistant

  • Applications:

    industrial, for low flow rates, for the food industry, for high flow rates, for harsh environments, sanitary, for corrosive environments

  • Process pressure:

    Max.: 1 bar (14.5 psi)

    Min.: 0 bar (0 psi)

  • Process temperature:

    Max.: 70 °C (158 °F)

    Min.: -20 °C (-4 °F)

Description

For air and gaseous media, solid state design suitable for 1 1/2" and above pipe installations

3202.30/xx: current output (4-20mA)
3202.31/xx: voltage output (0.1-10V)

Operating Principle: calorimetric (thermal mass)

Measuring range: 0-5 m/s to 0-50m/s, fully adjustable

Options:
high temperature (3205.30)
sensor elements ceramic coated on both sides (S108)

Pipe/Duct Connection: top hat flange fitting or PG21 threaded gland

Supply Voltage: 18 - 30 VDC
