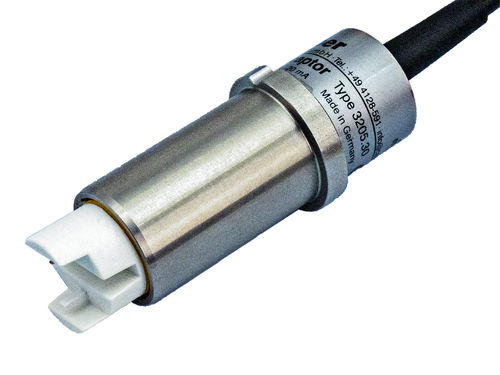

Calorimetric flow sensor vent-captor 3205.30 S134

volumegasfor process monitoring

flow meter for air and other gaseous media in a rugged stainless steel housing for compressed air up to 10 bar • housing with positioning slot (s134) • precise flow measurement • xx = measuring range (has to be specified by the customer) • adjustable measuring range • temperature compensated • analogue current output 4 – 20 mA • rugged industrial design (special encapsulation) Current output: 4 - 20 mA Measuring range: 0-5 m/s, 0-10 m/s, 0-20, 0-30 m/s, 0-40 m/s, 0-50 m/s, continuously adjustable Operating voltage: 18 - 30 VDC The vent-captor type 3205.30/xx is ideal for all measurement and control tasks within automation processes and other industrial applications where gaseous media have to be controlled. Due to its robust stainless steel design it is particularly suitable for use under pressure conditions. The sensor works according to the calorimetric measuring principle which allows the adjustment of the measuring range to a large quantity spectrum. vent-captors operate fully electronically and without mechanically moved parts.
