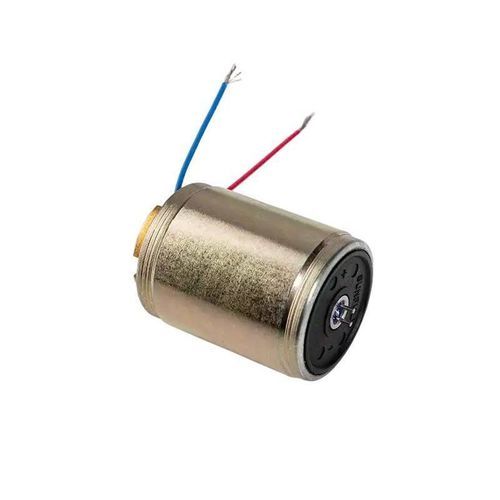

Surface geophone PS-ML-60

horizontalverticalindustrial

Product overview
The PS-ML-60 is a dual-output seismic detector (special-type geophone) that provides two separate output channels: one optimized for signal output and one for control/trigger terminals. It is designed for exploration and engineering vibration measurement where simultaneous signal acquisition and control signaling are required.

Applications

• Seismic exploration and field surveys
• Vibration monitoring in civil and geotechnical engineering
• Triggering and control for acquisition systems

Key technical parameters

• Model: PS-ML-60
• Type: Dual-output seismic detector (signal output + control terminals)
• Natural frequency: 60 Hz (+10% / -10%)
• Damping: 0.22 ±30%
• Top coil resistance: 80 Ω ±15%
• Bottom coil resistance: 1850 Ω ±5%
• Top sensitivity: 3.6 V/m/s ±30%
• Bottom sensitivity: 92 V/m/s ±7%

Technical parameters (detailed)

• Top channel — Natural frequency: 60 Hz; Coil resistance: 80 Ω ±15%; Sensitivity: 3.6 V/m/s ±30%; Damping: 0.22 ±30%
• Bottom channel — Natural frequency: 60 Hz; Coil resistance: 1850 Ω ±5%; Sensitivity: 92 V/m/s ±7%; Damping: 0.22 ±30%

Notes

• Damage resulting from high voltage or physical impact is excluded from warranty coverage.
• Product specifications may be updated without prior notice.
