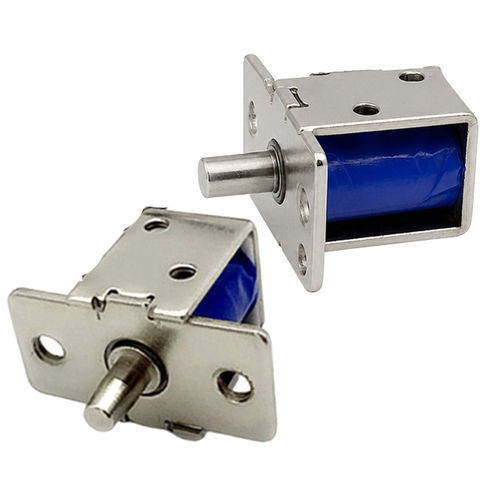

Electromechanical lock WL0620

solenoidfor cabinetsdrawer

Product Description
The WL0620 12V DC solenoid lock is a compact electromechanical locking device designed for controlled access in industrial and commercial applications. Operating on a 12V DC supply, the solenoid coil actuates a push‑pull plunger to lock or release mechanisms. Available in fail‑safe or fail‑secure configurations, the unit is suitable for cabinets, lockers, vending machines and equipment enclosures where space and quick response are required.

Unit Features

• Rated for DC 12V operation with low power consumption (3–6 W).
• Push & pull work mode; configurable as fail‑safe or fail‑secure.
• Compact screw‑mount body for easy integration into enclosures and panels.
• Fast response in milliseconds; suitable for pulse and continuous control modes.
• Compatible with access control systems, microcontrollers, RFID, biometric and keypad interfaces.

Technical Datasheet
Brand: WeiLong Technology
Model Number: WL0620
Rated Voltage (V): DC12V
Rated Power (W): 3-6W
Work Mode: Push and Pull
Holding Force (N): 50 Gf
Stroke (mm): 2-5 MM Customized
Working Duty: Continuous
Service Life: 200 Thousand Times
Certification: CE, ROHS, ISO9001
Material: Superior Magnet Iron
Lead Wire Length (mm): 200 MM
Install Style: Screw
Tolerance of Dimension: +/- 0.1 MM
Water-proof: None (standard models)
Insulation Class: B
Hi-Pot Test: AC 600V 50/60Hz 2s
Non-excitation Holding Force: 0
Working Temperature: -10°C - 100°C
Duty Cycle: 1-100%
Thread Depth (mm): /
Payment Term: TT, or LC At Sight
Sample Order: Yes
Warranty: 1 Year
MOQ: 1000 pcs
Supply Ability: 5000 pcs per Week
Delivery Time: 30 Days
Port of Loading: shenzhen

Applications
Designed for compact locking requirements across multiple sectors: cabinet and drawer locks, parcel and vending lockers, equipment enclosures, retail kiosks and smart home access modules. Frequently integrated with RFID readers, fingerprint scanners, keypads and microcontroller boards for automated access control.

Advantages & Drawbacks

• Benefits: economical and space‑saving electromechanical solution; low start current enabling adapter or battery use; rapid actuation; configurable control modes for varied use cases.
• Drawbacks: fail‑safe variants require continuous power when unlocked, which may produce heat; continuous high‑duty operation can accelerate coil wear; holding force is lower than heavy‑duty magnetic locks and not intended for high‑security external doors; audible click during actuation.

Troubleshooting & Maintenance
Typical issues: no actuation (verify stable 12V supply, wiring polarity and current capability), clicking without movement (check mechanical alignment, debris or loose fasteners), overheating (avoid prolonged continuous energizing beyond rated duty). Regular inspection of wiring, secure mounting and periodic functional tests extend service life.

Choosing Guidance
Select based on locking mode (fail‑safe vs fail‑secure), required holding force and stroke, power/current budget, mounting constraints, duty cycle and environmental exposure. Confirm compatibility with control electronics (voltage, pulse duration) and consider thermal behavior for continuous applications.

Specifications

• Model: WL0620
• Brand: WeiLong Technology
• Rated Voltage: DC 12V
• Rated Power: 3-6 W
• Work Mode: Push & Pull
• Holding Force: ~50 gf
• Stroke: 2-5 mm (customizable)
• Working Duty: Continuous
• Service Life: ~200,000 cycles
• Certifications: CE, ROHS, ISO9001
• Material: Superior magnet iron
• Lead Wire Length: 200 mm
• Install Style: Screw mount
• Insulation Class: B
• Operating Temperature Range: -10°C to 100°C
• Warranty: 1 year
• MOQ: 1000 pcs; Supply Ability: 5000 pcs/week; Typical delivery: 30 days
