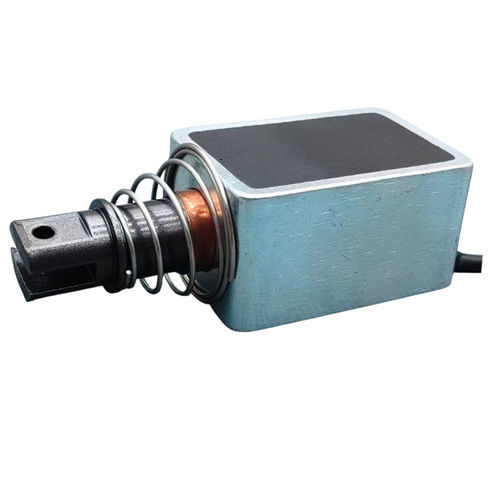

Solenoid lock WL1660

electrically-operatedelectromechanicalfor vending machines

Product overview The WL1660 solenoid door lock by Weilong Technology is a compact DC electromechanical locking device providing push-pull linear action for access control applications. It is suitable for integration into smart doors, cabinets, lockers, vending machines and small-security enclosures where a precise linear locking motion is required.

Applications

• Smart door locks and access control systems (RFID, keypad, biometric)
• Cabinets, vending machines, lockers and ATM/display enclosures
• Access control equipment manufacturers and IoT security devices
• Automation systems requiring compact linear locking actuators

Technical specifications (excerpt) Brand: Weilong Technology
Model: WL1660
Rated voltage: DC 6V / 12V / 24V
Rated power: 60–100 W
Work mode: Push-pull linear
Holding force: 20–30 N
Stroke: typically 10–15 mm (customizable up to 20 mm)
Reset time: 1 s ON / 9 s OFF
Service life: listed values include 200,000 cycles; other page references ≥300,000 cycles (marketing claims vary)
Certifications: CE, RoHS, ISO9001
Material: superior magnet iron core, carbon housing, copper coil
Lead wire length: 200 mm
Installation: screw mount
Dimension tolerance: ±0.1 mm
Waterproof: standard (none)
Insulation class: B
Hi-pot test: AC 600V 50/60Hz 2s
Non-excitation holding force: 0 N
Operating temperature: -10°C to 100°C
Duty cycle: 1–100% (continuous operation supported)
Supply & logistics: MOQ 1000 pcs, supply ability 5000 pcs/week, delivery time ~30 days, port of loading Shenzhen

Unit features

• Compact size: 60 × 33 × 40 mm
• Plunger diameter: φ20 mm
• Stroke configurable (typically 10–15 mm)
• Force range: 20–30 N
• Power/current: approx. 60–100 W; current ~1–3 A depending on voltage
• Resistance: ~60–200 Ω depending on configuration
• Life: designed for long cycle life; reported figures vary by configuration
• Configurable for fail-safe or fail-secure behavior

Installation and handling Designed for installation in confined spaces with adjustable mounting holes for easier integration. Recommended to manage duty cycle, heat dissipation and correct power supply when used in heavy-duty or continuous applications. Verify stroke, voltage and force customization options prior to final integration.

Ordering and supply Samples available. Warranty: 1 year. Payment terms: TT or LC at sight. Contact supplier for customization (voltage, stroke, force, coating) and for volume lead times.
