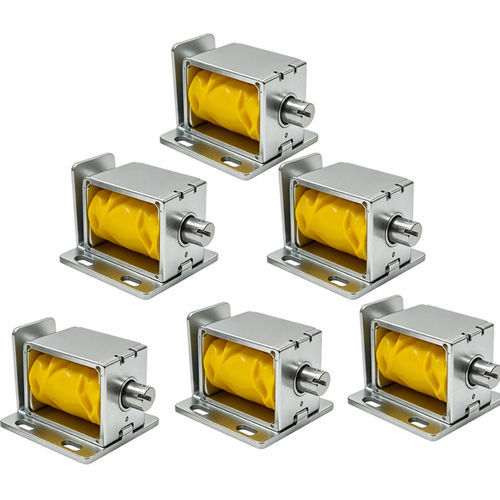

Electromagnetic lock WL0627

electrically-operatedsolenoidfor cabinets

Product description
A compact solenoid lock WL0627 designed for access control and automated equipment. The lock uses an electromagnetic coil to drive a plunger (push-pull type) that engages or releases the bolt when energized. Suitable for low-voltage systems, it provides fast actuation and simple integration into electronic control panels and automated mechanisms.

Key features

• Compact dimensions for installation in confined spaces
• Fast, repeatable push-pull operation
• Low-voltage DC operation (energy-efficient)
• Long service life designed for industrial cycles
• Optional manual override for emergency operation
• Easy integration with access control, vending and kiosk systems

Product overview
The WL0627 comprises a coil, plunger, return springs and a zinc-coated carbon steel housing. Available in fail-safe or fail-secure configurations. Stroke and holding force can be customized to application requirements. Typical rated voltages: 6 V DC, 12 V DC or 24 V DC.

Applications
Suitable for cabinets, lockers, vending machines, kiosk doors, IoT enclosures, electronic cabinets, industrial automation, robotics and access control systems where compact, electrically driven locking is required.

Technical specifications

• Brand: Weilong Technology
• Model Number: WL0627
• Rated Voltage (V): DC 12 V or 24 V
• Rated Power (W): 5-8 W
• Work Model: Push-Pull Type
• Holding Force (N): 100 GF
• Stroke (mm): Customized
• Reset Time (s): 20 s
• Service Life: 300,000 cycles
• Certification: CE, RoHS, ISO9001
• Material: Carbon steel housing with zinc coating
• Lead Wire Length (mm): 200
• Install Style: Mounted with screw holes
• Tolerance of Dimension: +/- 0.1 mm
• Water-proof: None
• Insulation Class: F (155°)
• Hi-Pot Test: AC 600 V 50/60 Hz 1 s
• Non-excitation Holding Force: 0
• Working Temperature: -10°C to 100°C
• Duty Cycle: 15 %
• Thread Depth (mm): /
• Payment Term: TT or LC at sight
• Sample Order: Yes
• Warranty: 1 Year
• MOQ: 500 pcs
• Supply Ability: 5,000 pcs per week
• Delivery Time: 30 days
• Port of Loading: Shenzhen
