Welding positioning magnet WL1625

Overview
An electric magnet holder is an electromagnetic device for holding, positioning and releasing ferromagnetic parts by a controlled magnetic field. Activated by an electrical coil, it provides switchable magnetic force for flexible automation and precise part handling in industrial environments.

Electromagnetic holder Description

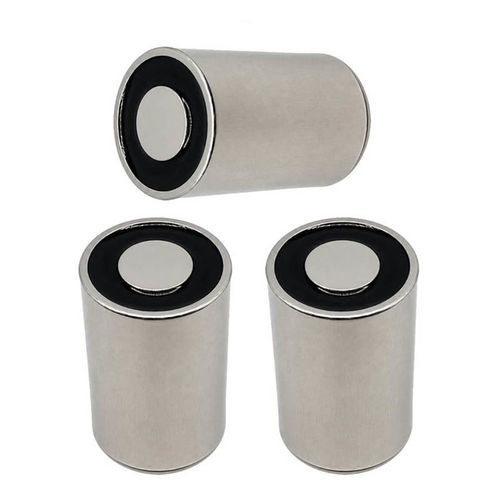

The WL1625 consists of a coil winding, magnetic core and carbon-steel housing with electrical leads and screw-mount holes. When energized the coil generates a magnetic field concentrated by the core to produce an attractive force; removing power releases the held part. Units may include connectors or feedback for integration with control systems.

How it works
The device operates on basic electromagnetism: current through the coil creates a magnetic field amplified by the core. Key factors affecting holding force include:

• Coil design and winding
• Core material and geometry
• Applied voltage and current
• Air gap between holder and workpiece
• Contact surface area and part geometry

Technical specifications (table)
Brand: Weilong Technology
Model Number: WL1625
Rated Voltage: DC 12V or 24V
Rated Power: 2–5 W
Work Mode: Power on, Magnet on
Holding Force: ≈3 Kgs
Working Duty: 100%
Resistance: 32 Ω
Service Life: ≈300,000 cycles
Certification: CE, ROHS, ISO9001
Material: Superior magnet, carbon steel housing
Lead Wire Length: 200 mm
Install Style: Screw hole
Tolerance of Dimension: ±0.1 mm
Water-proof: None
Insulation Class: B
Hi-Pot Test: AC 600V 50/60Hz 2s
Non-excitation Holding Force: 0
Working Temperature: -10°C to 100°C
Duty Cycle: 1–100%
Thread Depth: /
Payment Term: TT or LC at sight
Sample Order: Yes
Warranty: 1 Year
MOQ: 1000 pcs
Supply Ability: 5000 pcs/week
Delivery Time: 30 Days
Port of Loading: Shenzhen

Applications

• Industrial automation and robotics: holding parts during assembly, processing and inspection
• Material handling and lifting of steel plates and metal components
• CNC fixtures, jigs, welding fixtures and precision positioning devices
• Security and access control systems
• Compact solutions in laboratory or medical instruments requiring controlled magnetic holding

Advantages

• Switchable holding force (on/off) for process control
• Fast response and high repeatability for automated cycles
• Compact design and straightforward integration into control systems
• Customizable mounting and electrical options for application-specific needs

Disadvantages

• Requires continuous electrical power while engaged
• May generate heat under prolonged operation; thermal management recommended
• Higher initial cost versus passive mechanical holders or permanent magnets in some cases

Characteristics / technical specifications

• Model: WL1625
• Brand: Weilong Technology
• Voltage: DC 12V or 24V
• Power: 2–5 W
• Holding capacity: ≈3 Kgs
• Resistance: 32 Ω
• Duty: 1–100% (100% working duty supported)
• Material: Carbon steel housing with superior magnet
• Lead wire length: 200 mm
• Operating temperature: -10°C to 100°C
• Service life: ≈300,000 cycles
• Certifications: CE, ROHS, ISO9001
• MOQ: 1000 pcs — Supply: 5000 pcs/week — Delivery: ~30 days — Port: Shenzhen
