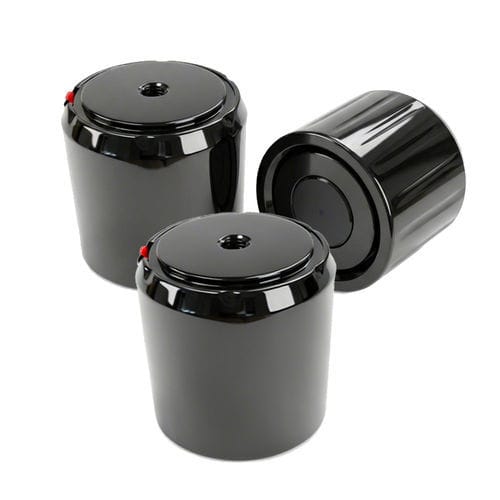

Holding electromagnet WL 3031

lockingcompactpermanent magnet

Product Overview Permanent electromagnet combines a permanent magnetic circuit with an electrically controlled coil to provide a magnetic holding device that consumes power only during switching or release. This hybrid design delivers stable holding force with low continuous power needs, making it suitable for industrial automation, security locks, robotics and energy-sensitive systems.

Key Benefits

• Energy-efficient: power required only during state changes
• Consistent holding force for locking and clamping applications
• Compact construction with fast switching response
• Reduced heat generation and extended service life
• Compatible with battery-powered or low-energy installations

Applications

• Automation equipment: positioning, clamping and locking
• Security and access control: magnetic locks and latching systems
• Robotics: end-effector gripping and tool-change mechanisms
• Industrial machinery: fixture holding, valve actuation and precision movement
• Medical devices and consumer electronics requiring low-power, quiet operation

Product Datasheet Brand: Weilong Technology
Model Number: WL 3031
Rated Voltage (V): DC 12V, 18V and 24V
Rated Power (W): 3-5 W
Work Mode: Power on, Magnet off
Holding Force (N): 130 N
Working Duty: 10%
Resistance: 32 Ω
Service Life: 100 Thousand Times (typical specification shown)
Certification: CE, ROHS, ISO9001
Material: Superior Magnet; Carbon Steel Housing
Lead Wire Length (mm): 200 MM
Install Style: Screw Hole
Tolerance of Dimension: +/- 0.1 MM
Water-proof: None (standard unit)
Insulation Class: B
Hi-Pot Test: AC 600V 50/60Hz 2s
Non-excitation Holding Force: 0
Working Temperature: -10°C - 100°C
Duty Cycle: 1-100%
Payment Term: TT, or LC At Sight
Sample Order: Yes
Warranty: 1 Year
MOQ: 1000 pcs
Supply Ability: 5000 pcs per Week
Delivery Time: 30 Days
Port of Loading: shenzhen

Advantages / Disadvantages

• Advantages: energy efficiency, fail-safe holding on power loss, reduced heating, long service life, quiet operation
• Disadvantages: higher initial cost versus simple electromagnets, more complex control electronics, limited force modulation (mainly on/off), typically higher weight, requires hybrid-system integration knowledge for advanced applications

Technical characteristics / specifications

• Model: WL 3031
• Brand: Weilong Technology
• Rated Voltages: DC 12V, 18V, 24V
• Power Consumption: 3-5 W
• Holding Force: 130 N
• Resistance (coil): 32 Ω
• Lead Wire Length: 200 mm
• Insulation Class: B
• Operating Temperature Range: -10°C to 100°C
• Duty Cycle: 1-100% (example work duty 10%)
• Service Life: specified 100,000 cycles (typical), potential >1,000,000 cycles with correct application
• Housing Material: carbon steel with plating options
• Mounting: screw holes; precision CNC dimensions tolerance +/- 0.1 mm
• Certifications: CE, RoHS, ISO9001
• Typical Applications: automation, security locks, robotics, industrial control, medical and consumer devices
