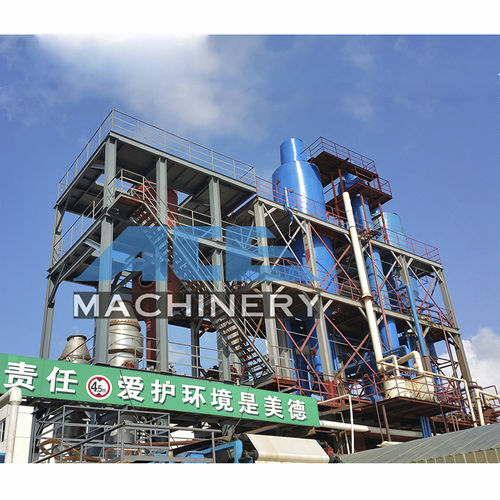

Vacuum evaporator

forced circulationprocessfor liquids

Evaporator For Calcium Carbonate Solution,Calcium Chloride Solution, Sodium Chloride ution, Sodium Chloride Types: Single-effect, double -effect, Triple-effect and multi-effect. 1. The forced circulation vacuum evaporator is mainly used in the process of low-temperature vacuum evaporation and concentration of liquid materials in drinks, food, pharmaceuticals, agricultural and sideline products deep processing, fine chemicals, and is also applicable for recovery of materials containing organic solvents (such as alcohol), especially for concentrating of sensitive juices by evaporation at low temperature, such as grape juice. It is also been used in chemical crystallization(such as for Calcium Carbonate Solution,Calcium Chloride Solution, Sodium Chloride) and waste water treatment process. 2. The first effect material is heated by the heat source; the secondary steam after separation will be used as second effect heat source and so forth; the final second effect steam and non-condensable gas enter into the condenser for condensing and then will be discharged by pump. 3. The discharged first effect condensate will be sent back to the boiler for reuse; and other-effect condensate and condenser condensate will undergo biologica Main Features 1. Stable operation, high efficiency and energy saving; low steam consumption. 2. Low evaporation temperature: the heat is fully utilized and he materials is gently heated, which is suitable for heat-sensitive materials. 3. Capacity: 500kg/hr to 100T/hr; 3. Evaporating Temperature: (can be adjusted according to detailed process ) First effect evaporating temperature: 75C Second effect evaporating temperature: 66.5 C
