Food Grade Non Return Valve Stainless Steel SS304 Check Valve
A check valve is a valve that prevents the fluid from flowing back and ensures that it flows in only one direction.
It can be used to prevent the less of prime of the pump and to avoid pipe-hammering.
It is used in the food-processing, beverage, wine-making, oil-making, cosmetics, pharmaceutical and chemical industries.
The valve opens when the pressure of the fluid exceeds the pressure exerted by the pump spring. When the two pressures are equalized, the valve closes. A stronger counter-pressure allows the valve to close.

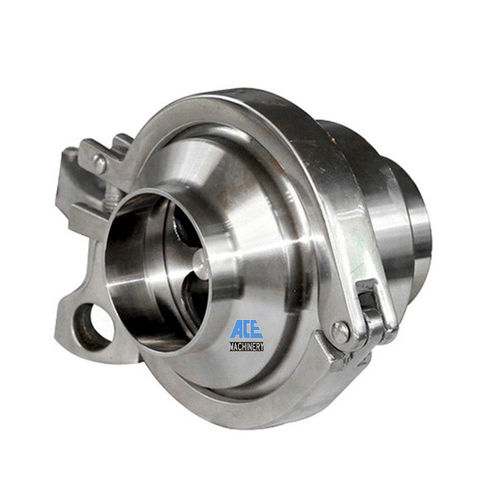

Product Name: - Sanitary Check Valve
Valve Body Material: - SS304/SS316L
Seal Material: - EPDM (standard)/SILICON/NBR
Mex working pressure: - 10Bar
Max. Working Temperature: - 120 degree C
Availably size: - 1"-4", DN25-DN100
Availably connection: - Clamp, weld, thread
Availably standard: - 3A/DIN/SMS/RJT/ISO/IDF
Certificate: - ISO
