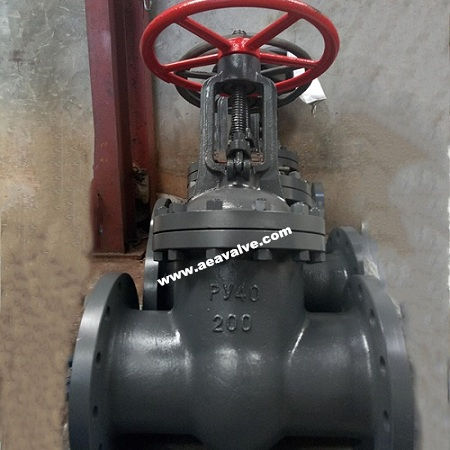

Gate valve GOST with handwheelflangestainless steel
Add to favorites
Compare this product
Characteristics
- Type
- gate
- Operation
- with handwheel
- Applications
- flange
- Material
- stainless steel
- Other characteristics
- standard
- DN
Min.: 15 mm
(0.591 in)Max.: 600 mm
(23.622 in)- Temperature
Min.: -50 °C
(-58 °F)Max.: 600 °C
(1,112 °F)
Description
Russian Standard GOST Gate Valve Z44 (30с41нж, 30с64нж, 30с15нж,30с76нж,30с45нж)
Technical Specifications：
(1) Design Standard: GOST 5762-2002
(2) Face to Face Dimension: GOST 3706-93
(3) End Flange Dimension: GOST 12815-80
End BW Dimension: GB/T 12224
(4) Structures: Straight Pattern
(5) Material of Body: GS-C25, S.S 304, S.S 316
(6) Pressure Rating: PN16, PN25, PN40, PN63,PN160
(7) Test standard: GOST356-80
Feature：
– Straight pattern
– Outside Screw and York
– Bolted bonnet
– Seat in stellite or 13%Cr
– Available with gear operator
– Flange Ends
– Butt-welding Ends
Actuation: can operate with lever, gear box, pneumatic or electric actuator with handwheel for emergencies
Medium: The valve is suitable for several media including water, steam, oil, gas, petrol products, nitric acid, acetic acid, etc.
Working temperature: from -46oC or -50oC (stainless steel constructions) and -29oC (carbon steel constructions) up to 600℃
