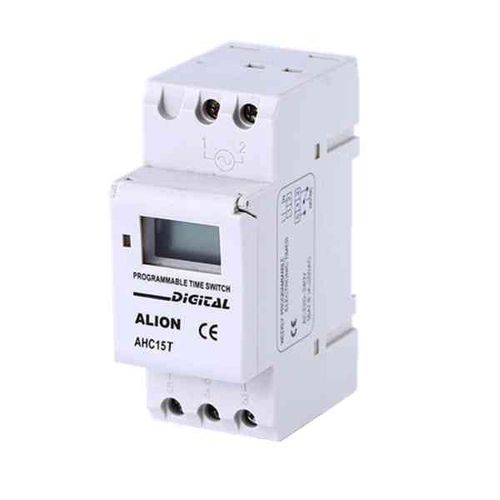

Digital time switch AHC15T

DIN rail

- Astronomical time switch LCD Display Program follows the sunrise / sunset Program does not follow sunrise / sunset - Perpetual calendar 40 years - Latitude set North: 1 ~ 66º South:1 ~ 66º 1º increased - 8 groups on-off program Can Switching preselection Can manually to control on-off - 1 channel - Screw terminals - Built-in lithium battery, and travel time as usual after power failure Fully operable without mains connection Technical Data: 16A Loading Product TypeAHC15T Times of switch setting20 groups Operating voltage220V AC110V AC12V AC&DC24V AC&DC Frequency60Hz50Hz60Hz 50/60Hz for AC 50/60Hz for AC Width2 modules Installation typeDin rail Terminal Quantity5 Type of contactChangeover contact Switching outputPhase-independent Method of connection terminalScrew terminals Power reserve3 years Switching capacity at 250 V AC, cos φ = 116A Switching capacity at 250 V AC, cos φ = 0,610A Incandescent/halogen lamp load 230V2600W Energy saving lamps170W LED lamp 8 W120W Fluorescent lamp load (electronic ballast)650W Fluorescent lamp load (conventional) not corrected1000VA Fluorescent lamp load (conventional) series-corrected1000VA Fluorescent lamp load (conventional) parallel-corrected730 VA 80uF Time accuracy at 25 °Ctypical ± 2 s/day (quartz) Consumed power4VA Test approvalCE Type of protectionIP 20 Protection classII according to EN 60 730-1 Housing and insulation materialHigh-temperature resistant, self-extinguishing thermoplastic Work temperature:-10 ~ +50 °C (non-icing) Ambient humidity:35~85%RH
