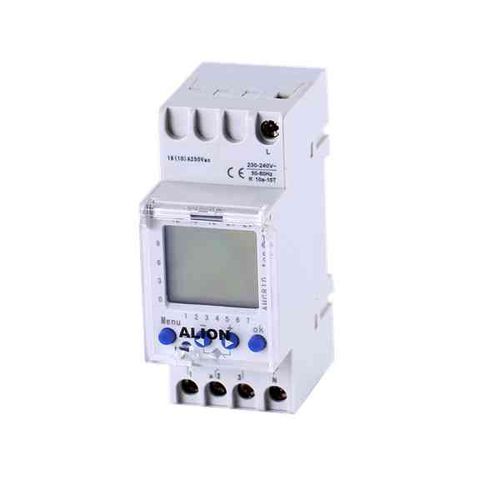

Digital time switch AHC810

DIN rail

The AHC810/812 Din rail yearly program digital time switch have a wide screen, display more information, and unit have seven kinds of language to choice. Description: - Digital time switch with weekly program - Display: LCD - Text-oriented user guidance in the display - ON/OFF operation: 44 on & 44 off - 4 year power reserve (lithium battery) - ON-OFF switching times - Permanent ON/OFF switching - PIN coding - Automatic summer/winter time changeover - 1 channels - There are six national languages (English, German, Italian, Portuguese and Italian),which can choose and change the language. Technical Data: Operating voltage 230 – 240 V AC Frequency 50-60 Hz Width 2 modules Installation type DIN-rail Power reserve 4 years Max. switching capacity at 250 V AC, cos φ = 1 16 A Max. switching capacity at 250 V AC, cos φ = 0.6 10 A Incandescent/halogen lamps2300 W Shortest switching time 1 min Time accuracy ≤ ± 2 s/day(Quartz) Power consumption 5VA Test approvals Type of protection IP 20 Protection class II in accordance with EN 60 730-1 Ambient temperature –10 °C … +50 °C
