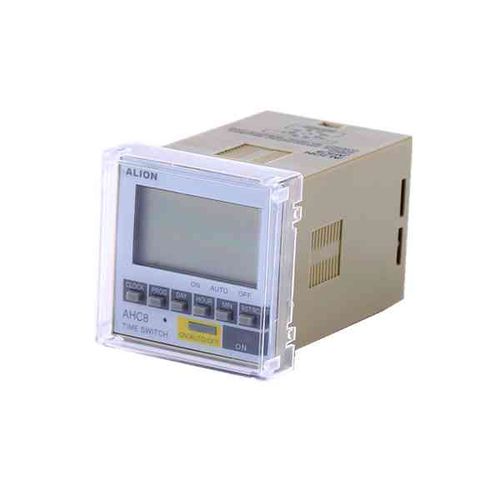

The AHC8&8A digital time switch provides two different types of installation, you can flexibly choose according to your needs encountered situations.
Description:
- DIN Rail installation.
- Advanced pre-setting one week before.
- Latest technology COMS quartz Mico-controller.
- Digital electronics general purpose time switch with daily and weekly programs.
- Repeat programs with 8 on/off settings,16 times pulse programs,and setting on/off manually.
- LCD displays real time to Hour/Minute/Second and ON/AUTO/OFF.
Technical Data:
- Rated voltage: AC220V50Hz
- Limit voltage: AC180V-250V
- Timing accuracy: ≤2s/d (at25℃)
- ON/OFF operation: 8 on & 8 off ,16 times pulse
- Power consumption: 5VA
- Weight: Approx 175g
- Display: LCD
- Service life: Mechanically: 107
Electrically: 105
- Load capacity: 25A 250VAC(Resistive load cosΦ=1)(AHC8A-1a)
16A 250VAC(Resistive load cosΦ=1)(AHC8/AHC8A-1c)
- Minimum interval: 1 minute
- Ambient humidity : 35~80%RH
Ambient temperature: -10~40℃
