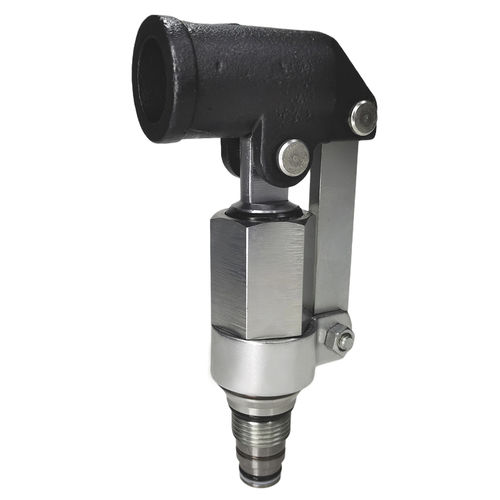

Piston pump MHP-100
handindustrialcompact

Piston pump - MHP-100 - Wenzhou Meric Hydraulic Technology Co.,Ltd - hand / industrial / compact
Piston pump - MHP-100 - Wenzhou Meric Hydraulic Technology Co.,Ltd - hand / industrial / compact
Piston pump - MHP-100 - Wenzhou Meric Hydraulic Technology Co.,Ltd - hand / industrial / compact - image - 2
Piston pump - MHP-100 - Wenzhou Meric Hydraulic Technology Co.,Ltd - hand / industrial / compact - image - 3
Add to favorites
Compare this product

Characteristics

Technology
piston
Operation
hand
Domain
industrial
Other characteristics
compact
Flow

9 l/min
(2.37755 us gal/min)

Pressure

207 bar
(3,002.281 psi)

Description

Specifications · Operating Pressure :207BAR · Internal Leakage:2drop/min.max.at operating pressure · Temperature:-40°C to +120°(-40°F to+250°F) · Cavity:10-2 · Fluids:Mineral-based fluids with viscosities of 7.4 to 420 cSt. Features · Hardened,precision ground parts for durability · Industry common cavity · Compact size · Cast Beam for heavy · Checks are integral to the cartridge Operation When the operator is pushed,the MHP-100 delivers nominal flow of 0.5 cu. in.to the ② port.When the operator is pulled,MHP-100 draws fluid from the ① port

Catalogs

Hand pump MHP-100
Hand pump MHP-100
3 Pages
