Manual test stand ASL

forcepullscrew

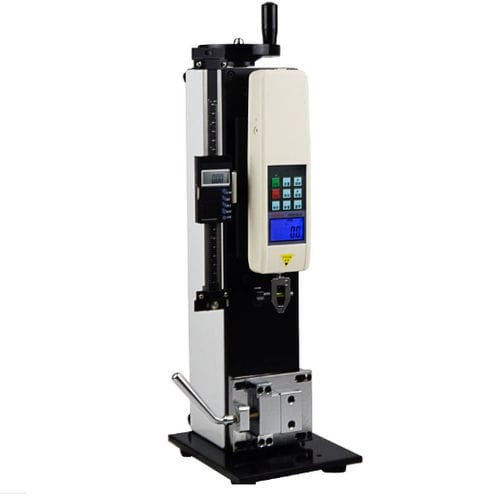

The ASL manual screw vertical and horizontal test stand is specially equipped for NK and HF series push-pull force gauges and can be combined into test machines for different purposes to perform accurate insertion force, pressing force, destructive experiments and other tests. At the same time as the force value, a scale can be added to display its displacement, and a comparative test of different workpieces under the same displacement can be performed. Features •Vertical and horizontal •Manual operation, simple and convenient •The machine can be installed on the table (table) to make the rack more stable •Equipped with digital display scale, can collect travel data at any time (ASL-S) Specifications •Maximum load: 500N •Effective stroke: 140 mm •L × W × H: 200 × 160 × 540 mm •Net weight: 15kg
