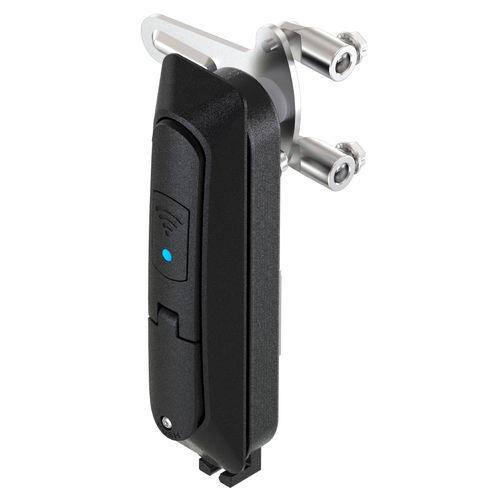

Electronic lock 1505 series

handlefor dooroutdoor

The 1505 Series Electronic Swinghandle is an outdoor IoT swinghandle designed for telecom and outdoor applications, offering multiple access methods, integrated Bluetooth and card reading, and a high IP65 protection level. It is constructed from zinc die with a Q235 cam, providing high strength and durability while supporting RS485, Wiegand and DO communication protocols to meet different requirements.

Key Features

• Offline record storage function
• DO, RS485 and Wiegand communication protocols to meet different requirements
• Made of zinc die for high strength and durability
• High protection grade (IP65) for waterproof and dustproof performance
• Integrated Bluetooth and card reading functions
• Integrated audible and visual feedback functions

Variants / Part Numbers

• 1505-116-20 — Mechanical key + Remote control
• 1505-1126-20 — Mechanical key + Remote control + Card
• 1505-1136-20 — Mechanical key + Remote control + Bluetooth (scanning code)
• 1505-11236-20 — Mechanical key + Remote control + Card + Bluetooth (scanning code)
• 1505-R302-20 — Mechanical key + Remote control + Card

Material

• Zinc die handle
• Zinc die base
• Q235 cam: Zinc plated

Technical Specifications

• Working Voltage: DC 12V
• Communication Method: RS485
• Panel Cutout: 32*160
• Locking Type: Cam locking type
• IP Rating: IP65
• Finish: Zinc die base and zinc die handle with black textured powder coating; Q235 cam zinc plated
