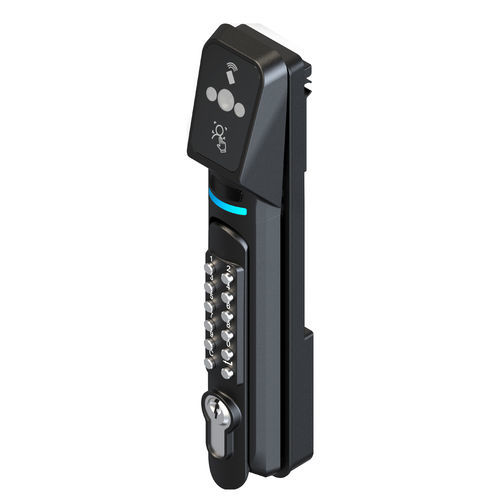

Electronic lock 1527

for cabinetsfor electrical control panelsfor industrial applications

Applications
Indoor cabinets, indoor IoT locks, electronic access control swinghandle, data center cabinets, indoor electronic swinghandle

Overview

• Electronic swinghandle designed for indoor cabinet and data center applications.
• Supports multiple access methods.
• Provides visual lock-status indication and digital logging of unlock events.

Specifications

• Working Voltage: DC 12V
• Communication Method: RS485
• Panel Cutout: 25*150 (float installation available on request)
• Locking Type: Cam control
• IP Rating: IP40
• Finish: Black textured powder coated (handle & base)

Key Features

• Multiple access methods supported
• Visual indication of lock status
• Digital recording of unlocking history

Material

• Zinc die handle
• Zinc die base

Technical specifications

• Model name: 1527 Series Electronic Swinghandle
• Working Voltage: DC 12V
• Communication Method: RS485
• Panel Cutout: 25*150 (float installation available on request)
• Locking Type: Cam control
• IP Rating: IP40
• Finish: Black textured powder coated (handle & base)
• Materials: Zinc die handle, Zinc die base
