Swing-handle lock 1507 series

camelectronickey

Product Overview

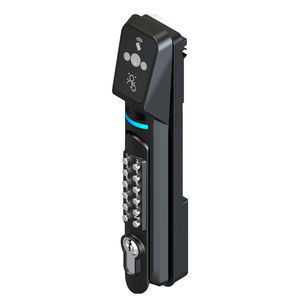

The 百变骑士 1507 Series electronic swinghandle is an indoor IoT cabinet lock designed for electronic access control of data center racks and industrial cabinets. Multiple model variants support combinations of mechanical key, remote control, password, card, Bluetooth (scan) and fingerprint access methods.

Summary / Tags

• Indoor application
• IoT cabinet lock
• Electronic access control swinghandle
• Data center cabinet lock

Specifications (excerpt)

• Working Voltage: DC 12V
• Communication Method: RS485, Wiegand
• Panel Cutout: 25 x 150 mm (float installation on request)
• Locking Type: Cam control
• IP Rating: IP40
• Finish: Q235 cam and mounting bracket: zinc plated; zinc die handle: black textured powder coat

Key Features

• Configurable access-method combinations by model
• Visual indication of lock status
• Digital logging of unlock events
• Compatibility with mainstream server and equipment cabinets
• Options for float (surface) installation on request

Material

• Zinc die-cast handle (textured black finish)
• Q235 cam
• Q235 mounting bracket (zinc plated)
• Black PA plastic lock body

Data Sheet — Part Numbers and Access Methods
1507-126-20 | Mechanical key + Remote control
1507-1216-20 | Mechanical key + Remote control + Password
1507-1226-20 | Mechanical key + Remote control + Card
1507-1236-20 | Mechanical key + Remote control + Bluetooth (scan)
1507-1246-20 | Mechanical key + Remote control + Fingerprint
1507-12126-20 | Mechanical key + Remote control + Password + Card
1507-12146-20 | Mechanical key + Remote control + Password + Fingerprint
1507-12246-20 | Mechanical key + Remote control + Card + Fingerprint
1507-121246-20 | Mechanical key + Remote control + Password + Card + Fingerprint

Technical specifications

• Working Voltage: DC 12V
• Communication: RS485, Wiegand
• Panel cutout: 25 x 150 mm (float installation available)
• Locking type: Cam control
• Ingress protection: IP40
• Finish & materials: Zinc plated Q235 cam and mounting bracket; zinc die-cast handle with black textured powder coat; black PA lock body
• Available access method configurations: mechanical key, remote control, password, card, Bluetooth (scan), fingerprint (various combinations by part number)
