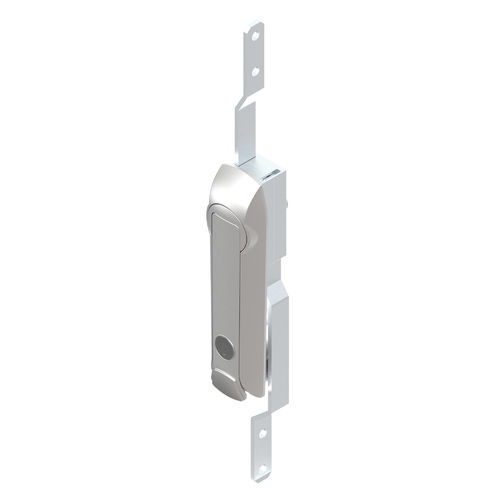

Swing handle 1104-B

for rod latchesdie-cast zincergonomic

Product Name
Rod Control Swinghandle 1104-B (No button, Self-locking) — Rod Control Type Series

Overview
Swinghandle designed for rod-control locking applications. Suitable for multipoint and three-point lock arrangements. The handle provides fast, ergonomic operation and the assembly meets IP65 for waterproof and dustproof performance, suitable for industrial enclosures and control cabinets.

Key Features

• Handle operation for quick actuation
• IP65 protection rating: waterproof and dustproof

Specifications

• Panel Cutout： Other
• Locking Type： Rod Control
• IP Rating： IP65
• Finish： NM spray painting (matte silver); Black Matte Powder Coated

Material

• Housing, Handle: Zinc die-cast
• Rod Control: Zinc die-cast
• Padlock Hasp: Stainless steel 316

Additional Images (illustrative)
Multiple product images and detail views are available on the product page showing the handle, rod-control mechanism and available finishes.

Technical specifications

• Product model: Rod Control Swinghandle 1104-B
• Product type/series: Rod Control Type Series
• Function: Rod-control locking for multipoint/three-point lock configurations
• Panel cutout: Other
• Locking type: Rod Control
• IP rating: IP65 (waterproof and dustproof)
• Finish options: NM spray painting (matte silver); Black Matte Powder Coated
• Housing & handle material: Zinc die-cast
• Rod control material: Zinc die-cast
• Padlock hasp material: Stainless steel 316
