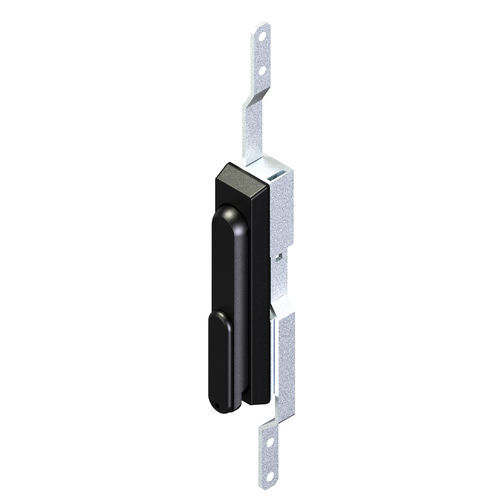

Key lock 1100-B
handlerodfor electrical control panels

Key lock - 1100-B - Wenzhou Yeeka Lock Technology Co., Ltd. - handle / rod / for electrical control panels
Key lock - 1100-B - Wenzhou Yeeka Lock Technology Co., Ltd. - handle / rod / for electrical control panels
Key lock - 1100-B - Wenzhou Yeeka Lock Technology Co., Ltd. - handle / rod / for electrical control panels - image - 2
Key lock - 1100-B - Wenzhou Yeeka Lock Technology Co., Ltd. - handle / rod / for electrical control panels - image - 3
Add to favorites
Compare this product
Go to the Wenzhou Yeeka Lock Technology Co., Ltd. website for more information

Characteristics

Type
key, handle, rod
Product applications
for electrical control panels
Material
zinc, zinc alloy, stainless steel
Other characteristics
swing-handle, waterproof, 3-point, IP65

Description

Product overview
Rod Control Swinghandle 1100-B. Categories: Swinghandle, Rod control lock, Multipoint lock, Three-point lock.

Key features
  • Sealed against water and dust (IP65)
  • Handle operation for quick, straightforward access
  • Keyed access for controlled entry and theft deterrence

Material
  • Housing, Handle: Zinc die-cast
  • Padlock hasp: Stainless steel 304
  • Rod Control components: Zinc die-cast

Additional product information
  • Panel cutout: 25*50*25*50
  • Locking type: Rod Control
  • IP rating: IP65
  • Finish: Black textured powder coating

Technical specifications
  • Model designation: 1100-B
  • Panel cutout dimensions: 25*50*25*50
  • Locking type: Rod Control
  • Ingress protection: IP65 (sealed against water and dust)
  • Finish: Black textured powder coating
  • Housing & handle material: Zinc die-cast
  • Padlock hasp material: Stainless steel 304
  • Rod control material: Zinc die-cast
