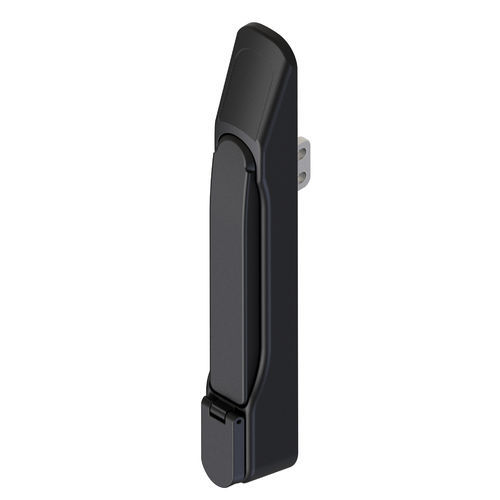

Manually-controlled rod lock 1130

manualmechanicalfor industrial electrical applications

Product Overview
Rod-control swinghandle designed for multipoint and three-point locking applications on industrial enclosures and electrical cabinets. Provides keyed access, sealing against water and dust (IP65), two-way rod control operation and optional padlock capability.

Short Description
The Rod Control Swinghandle 1130 (two-way) is a screw-on swinghandle from the Rod Control Type Series for secure multipoint locking. It delivers straightforward handle actuation, keyed anti-theft access and compact installation for industrial panels and cabinets.

Installation & Finish

• Installation Mode: Screw on
• IP Rating: IP65
• Finish: Black textured powder coated

Key Features

• Two-way rod control for multipoint/three-point locking
• Handle operation for fast actuation
• Keyed access for theft protection
• Sealed construction against water and dust (IP65)
• Padlockable on request
• Easy installation with screws and nuts

MATERIAL

• Housing, Handle: Zinc die
• Housing, Handle: Aluminum alloy

Accessories
There are currently no optional accessories available.

Technical specifications

• Model: Rod Control Swinghandle 1130
• Series: Rod Control Type Series
• Installation Mode: Screw on
• IP Rating: IP65
• Finish: Black textured powder coated
• Key Features: Two-way rod control; Handle operation; Keyed access; Sealed against water and dust; Padlockable on request; Easy installation
• Material: Housing/Handle — Zinc die or Aluminum alloy
