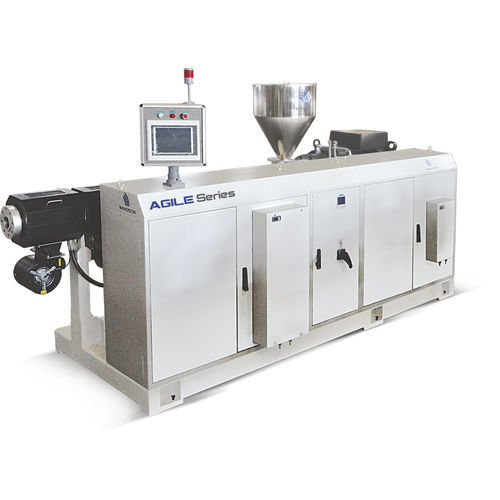

Single screw extruder AGILE

tubefor PPfor PE

Latest generation high speed single screw extruder for PE/ PP pipes Windsor Machines’ Agile Series is truly next generation. Capable of high speed output ranges and crafted for long-life, the lines offer superior quality in PE/PP pipe extrusion. The extruders have grooved feed design and are coated with Tungsten Carbide for higher wear-resistance. Features: L/D Ratio: 40:1 Post extrusion equipment to suit pipe size range OD from 32 mm to 800 mm Production line speed up to 30 mtr/min. High speed coiler for pipe size range OD 16 – 63 mm & 63 – 125 mm Energy consumption 0.22 – 0.23 units/kg for extruder Gearless Drive Technology (without gear box) Chipless cutter as option Most versatile Spiral Mandrel Design Advantages -Improved inner pipe surfaces -Short purging time -Optimized back pressure allows a balance of compression & melt temperature control -Uniform melt flow can be achieved yielding minimum wall thickness deviation -WINDSOR MACHINES spiral die is versatile by design which enables PE, PPR, ABS processability only by changing the toolings -Possibility with high speed design upto 30 mtr/minute line speed for smaller pipe size 20 – 40mm Vacuum Sizing Tanks -Intensive cooling provided to ensure high production rate -Self cleaning spray nozzle -Accurate vacuum control, water level control & temperature control -Two vacuum chambers and motorized axial movement provided from VST-250 and above for quick startup and less wastage
