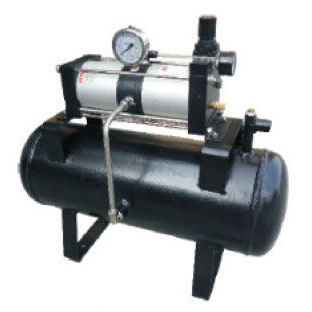

Air amplifier

Air Amplifiers are suitable for the compression of pressurized air or nitrogen. This equipment mainly consists of a Compressed air filter G 1/2″, a Pressure regulator G 1/2″ with a shut-off valve, and a pressure gauge 0-16 bar φ 50 mm. Characteristics amplifiers are suitable for the compression of pressurized air or nitrogen. The units are capable of increasing normal pressures of 4 bar or 6 bar to the desired final pressures. The Air Amplifiers are operated with normal shop air and are provided with a variety of amplification ratios. All Air Amplifiers can be supplied with an air control unit comprising a filter, pressure regulator with pressure gauge and an air shut-off valve. The desired operating pressure can be preset by means of the air control unit in correspondence with the different pressure ratios. We can offer you a choice between a standard Air Amplifier Station or a customized solution Specifications The Air Amplifier Station Type mainly consists of: ● Compressed air filter G 1/2″, ● Pressure regulator G 1/2″ with shut-off valve and pressure gauge 0-16 bar φ 50 mm, ● Check valve, ● Pressure receiver 40 Liter, pmax. 21 bar, ● Safety relief valve, set for 21 bar, ● Outlet pressure gauge 0-40 bar φ100 mm, ● Drain valve, ● Shut off valve in the pressure outlet line. The system is completely assembled, pressure tested and ready for connection.
