LCD panel PC W12IAD3S-VMM9(HB)
widescreenresistive touch screen12.1"

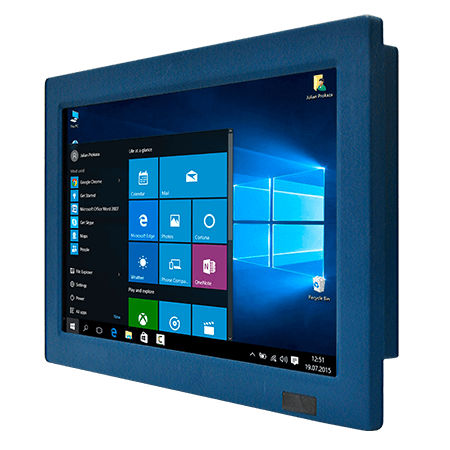

LCD panel PC - W12IAD3S-VMM9(HB) - Winmate, Inc. - widescreen / resistive touch screen / 12.1"

LCD panel PC - W12IAD3S-VMM9(HB) - Winmate, Inc. - widescreen / resistive touch screen / 12.1" - image - 2

Add to favorites

Compare this product

Go to the Winmate, Inc. website for more information

Characteristics

Screen type: LCD, widescreen, resistive touch screen
Display size: 12.1"
Processor: Intel® Core i5-1235U
Resolution: 1280 x 800
Operating system: Windows 10 IoT Enterprise, Windows 11, Linux® Ubuntu™, Windows 11 IoT Enterprise
Construction: compact, fanless, aluminum frame
Mounting: VESA mounting, in-vehicle
Applications: for the mining industry, industrial, for IoT applications, POS, for data acquisition systems, data acquisition, for hazardous areas, for marine applications, for mobile applications, railway, for check-in kiosk, for agricultural applications
Protection level: IP65, corrosion-proof, shock-proof, MIL-STD-810, vibration-resistant
Other characteristics: sunlight-readable, high-performance, real-time

Description

W12IAD3S-VMM9(HB) 12.1″ Intel® Core™ i5-1235U G-WIN Vehicle Mount Panel PC KEY FEATURES Wide 12.1″ Panel, 1280 x 800 resolution, 400 nits (Optional for 1000 nits) 12th Gen Intel® Core™ i5-1235U processor -10 ~ +55°C Wide Range Operating Temperature Aluminum housing with anti-corrosion treatments. Fanless Design Wide Range 9 to 36V DC Input with isolation. Optional for Ignition On/Off delay Resistive Touch / Anti-Reflective Protection Glass (Optional) Front IP65 (Except I/O parts) Anti-Shock & Vibration compliant with MIL-STD-810F/G

Catalogs

12.1″ Intel® Core™ i5-1235U G-WIN Vehicle Mount Panel PC W12IAD3S-VMM9(HB)

2 Pages

Go to the Winmate, Inc. website for more information
