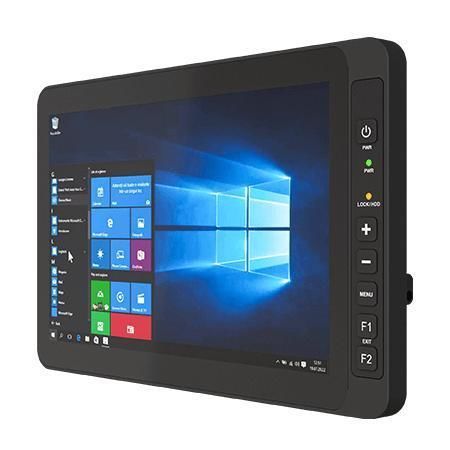

Touch screen panel PC W10IE3A-67H2-P(HB)

capacitive touch screenmulti-touch screenPCAP touchscreen

Overview

• 10.1-inch Intel® Celeron® N6211 G-WIN IP67 P-CAP Panel PC designed for industrial and outdoor applications
• Front IP67 protection, VESA mount, wide 9~36V DC input

Key features

• Intel® Celeron® N6211 Processor, 1.2 GHz base (up to 2.6 GHz), 1.5 MB cache
• 10.1-inch panel, 1280 x 800 resolution, 350 nits standard (optional 1000 nits high-brightness)
• Projected capacitive (P-CAP) multi-touch with optical bonding; optional anti-reflective protection glass
• Plastic front bezel with anti-corrosion aluminum die-cast back cover
• Wide operating temperature: -10°C to 55°C; fanless design
• Wide DC input range 9 to 36V (optional ignition on/off delay); optional WLAN and Bluetooth
• TPM 2.0 and multiple OS options (Windows 11/10 IoT, Windows 11 Pro, Linux Ubuntu 22.04)

Certifications

• IP67 (front)
• CE
• FCC

Touch and optical bonding
Integration of projected capacitive touch and optical bonding reduces reflective glare and improves touch accuracy and display clarity, suitable for outdoor kiosks, industrial control panels and medical instruments.

Anti-corrosion aluminum die-cast back cover
The anti-corrosion aluminum die-cast back cover protects internal components in harsh industrial environments and supports long-term reliability.

Temperature adaptability
Designed to operate reliably between -10°C and 55°C for outdoor use and demanding environmental conditions.

Mounting options
Versatile mounting including VESA for wall and desk installations to fit varied industrial setups.

IP67 waterproof design
Front IP67 rating ensures resistance to dust and water ingress for deployment in challenging environments.

Technical specifications

• Model: W10IE3A-67H2-P(HB)
• Processor: Intel Celeron N6211 1.2 GHz (up to 2.6 GHz), 1.5 MB cache
• Memory: 1 x SO-DIMM DDR4 3200 MHz; 4 GB standard; 8 GB and 16 GB optional
• Storage: 1 x M.2 2242 B-Key SSD 128 GB standard; 256 GB and 512 GB optional
• Ethernet controller: Intel® Ethernet Controller (Gigabit)
• Security: TPM 2.0
• Operating System (optional): Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Windows 10 IoT Enterprise 64-bit; Linux Ubuntu 22.04
• WLAN / Bluetooth: Supported (optional)
• Display size: 10.1 inches
• Touch / Glass: Projected capacitive multi-touch bonded to panel; true flat protection glass bonding optional
• Resolution: 1280 x 800
• Panel brightness: 350 nits standard; 1000 nits optional
• Contrast ratio: 800:1
• Viewing angles: 85 / 85 / 85 / 85
• Active area: 216.96 x 135.6 mm
• Dimensions: 263.9 x 172.6 x 40.4 mm
• Weight: 1.5 kg
• Mounting: VESA mount
• Enclosure: Plastic front bezel with aluminum back cover; Surtec 650 pre-finish, polyester powder coating
• Cooling system: Fanless design
• Operating humidity: 10% to 90% RH non-condensing
• Operating temperature: -10°C to 55°C
• Storage temperature: -30°C to 70°C
• Shock: MIL-STD-810G Method 516.6 Procedure I
• Vibration: MIL-STD-810G Method 514.6 Procedure I
• IP rating: IP67 (front)
• Certifications: CE, FCC
• USB ports: 1 x M12 waterproof connector for 2 x USB 2.0
• Serial port: 1 x M12 waterproof connector for RS232
• LAN: 1 x waterproof Gigabit RJ45 connector
• Indicator: 1 x LED for power; 1 x LED for storage
• Power input: 1 x M12 waterproof connector for 9~36V DC
• Buttons: Power key; "+" brightness; "-" brightness; Menu key (Winset Utility); 2 x programmable function keys configurable by Win-Set Utility
• Accessories included: External open wire power cable with waterproof connector; external USB cable with waterproof connector; external COM cable with waterproof connector; external LAN cable with waterproof connector; waterproof caps; RJ45 female-female converter; VESA screws
• Optional accessory: 100~240V AC to DC 84W adapter with power cord (optional)
• Ordering option: W10IE3A-67H2-G(HB) for Anti-Reflective Protection Glass (optional)
