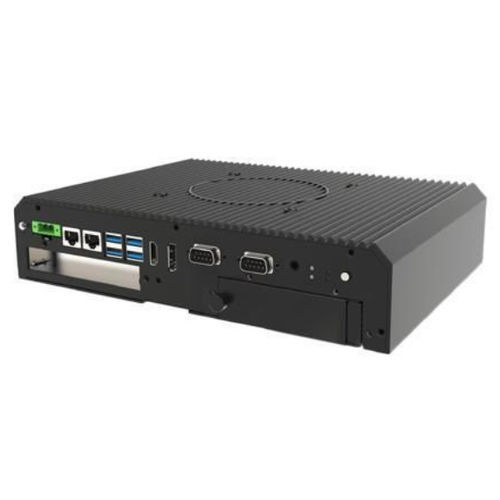

Box PC ITMH100-AI

Edge AIembedded11th Generation Intel® Core™

Overview

• ITMH100-AI Edge AI Box PC with Intel® Core™ i5-1135G7 and integrated Hailo-8™ AI accelerator (up to 26 TOPS)
• Fanless metal enclosure, removable 2.5" drive bay and wide DC input (9–29V)
• Modular front panel option to convert into a Panel PC for versatile industrial deployments

Key Features

• Intel® Tiger Lake UP3 Core™ i5-1135G7 CPU with Iris Xe graphics
• Integrated Hailo-8™ AI module delivering up to 26 TOPS for efficient edge inference
• Multiple video outputs (DisplayPort 1.4, optional HDMI 2.0) and additional USB 3.2 ports
• Tool-free removable 2.5" HDD/SSD bay for quick field service
• Wide DC input range (9–29V) via 3-pin terminal block
• Modular expansion: mPCIe, PCIe x16 (x4 signal), M.2 2230 Key E

Hailo AI Processor
The integrated Hailo-8™ AI accelerator provides up to 26 TOPS of inference performance with high power efficiency, enabling real-time vision, robotics, smart retail and IIoT use cases at the edge.

Power & Reliability
Wide input voltage support (9–29V DC) with protected power design, fanless thermal management and metal housing reduce moving parts and dust ingress for improved uptime in industrial environments.

Display & Graphics
Flexible multi-display support suitable for portrait and landscape signage configurations. Outputs include DisplayPort 1.4 and optional HDMI 2.0; additional USB3.2 ports support display modules and peripheral connectivity.

Modular & Serviceable Design
Modular front-panel option, swappable 2.5" storage bay and expansion slots enable easy on-site maintenance and customization for specific industrial applications.

Typical Applications

• Factory automation and machine vision
• Robotics and autonomous controllers
• Smart retail, kiosks and digital signage
• Edge AI/IIoT deployments requiring local inference and low-latency processing

Certifications

• CE
• FCC

Technical specifications

• Processor: Intel Core i5-1135G7 (2.4 GHz, up to 4.2 GHz)
• Memory: 2 x SO-DIMM DDR4 3200 MHz — 4GB base; options 8GB/16GB/32GB
• Storage: 2 x 2.5" removable HDD/SSD bays (examples: 256GB, up to 512GB shown)
• AI Accelerator: Hailo-8™ module — up to 26 TOPS
• Ethernet: Intel I211-AT + Intel I219-LM (2 x Gigabit LAN)
• Security: TPM 2.0
• OS: Optional Windows 11 IoT Enterprise / Windows 11 Pro / Ubuntu 22.04
• WLAN/BT: Optional (M.2 2230 Key E slot)
• Expansion: 1 x mPCIe; 1 x PCIe x16 (x4 signal, module max 180 x 121 mm); 1 x M.2 2230 Key E; swappable 2.5" bay
• USB: 4 x USB 3.2 Gen1 (Type-A)
• Serial: 2 x RS232/422/485 (default RS232)
• Video: 1 x DP1.4; 1 x HDMI 2.0 (optional)
• Audio: 1 x audio combo (mic in / line out)
• Indicator: 1 x storage LED
• Power input: 1 x 9–29V DC via 3-pin terminal block
• Power rating/adapter: 9–29V DC with fuse protection; example adapter 12V 84W
• Power consumption: ~45W–55W
• Dimensions: 276 x 207 x 60 mm
• Weight: ~3.0 kg
• Mounting: VESA supported
• Enclosure: Metal housing
• Cooling: Fanless design
• Operating temp: 0°C to 50°C; storage temp: -10°C to 60°C
• Operating humidity: 10% to 90% RH, non-condensing
• Accessories: AC/DC adapter, power cord, open-wire cable with terminal block, VESA screws
