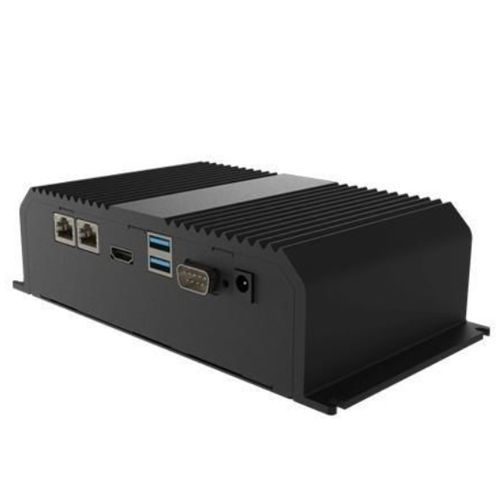

Box PC IE32SB3-101AI

AI InferenceEdge AIembedded

Overview
The IE32SB3-101AI is an Edge AI Box PC designed for industrial AIoT, robotics and automation. Equipped with an Intel® Atom® x6413E processor and an integrated Hailo‑8™ M.2 AI accelerator (up to 26 TOPS), it supports low-latency AI inference at the edge. The system offers fanless metal housing, multiple I/O and compatibility with Windows® IoT Enterprise and Linux distributions for IIoT and Industry 4.0 deployments.

Key Features

• Intel Atom® x6413E processor (1.5M cache, up to 3.00 GHz)
• Integrated Hailo‑8™ M.2 AI accelerator module, up to 26 TOPS
• Fanless metal housing for silent, maintenance‑free operation
• 1 x DDR4 SO‑DIMM 3200 MHz, up to 16 GB
• 2 x USB 3.2 Gen2x1 (Type‑A), up to 3 x COM ports
• 2 x 2.5GbE LAN (Intel controllers), optional HDMI 2.0

Certifications
CE; FCC

Product highlights

• High-efficiency AI inferencing at the edge with Hailo‑8™ (up to 26 TOPS)
• Versatile I/O set for sensors, cameras and industrial networks (USB, serial, 2.5GbE)
• Compact metal chassis (205 x 110 x 55 mm) suitable for desk mounting and integration

Mechanical & Environmental

• Dimensions: 205 x 110 x 55 mm; Weight: 1.1 kg
• Metal housing, desk mount
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 55°C; Storage temperature: -10°C to 60°C

Technical specifications

• Model: IE32SB3-101AI
• Processor: Intel Atom® x6413E (up to 3.0 GHz)
• Memory: 1 x SO‑DIMM DDR4 3200 MHz; 8 GB standard, 16 GB optional
• Storage: 1 x M.2 2242 B‑Key SSD; 256 GB standard, 512 GB optional
• AI accelerator: Hailo‑8™ M.2 module (up to 26 TOPS)
• Ethernet: 2 x Intel® 2.5 Gigabit Ethernet (RJ45)
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Windows 10 IoT Enterprise 64-bit; Linux Ubuntu 22.04
• USB: 2 x USB 3.2 Gen2x1 (Type‑A)
• Serial: 1 x RS232/422/485 (default RS232); optional 1–2 x RS232
• Video: 1 x HDMI 2.0 (optional)
• Power input: 1 x 12V DC, 2.5φ DC jack; Rated power: 12V DC
• Button: 1 x Power Button
• Cooling: Fanless design
• Accessories included: 1 x 100~240V AC to DC adapter; 1 x power cord; 1 x quick start guide; 6 x M4*8 desk mount screws
• Certifications: CE; FCC
