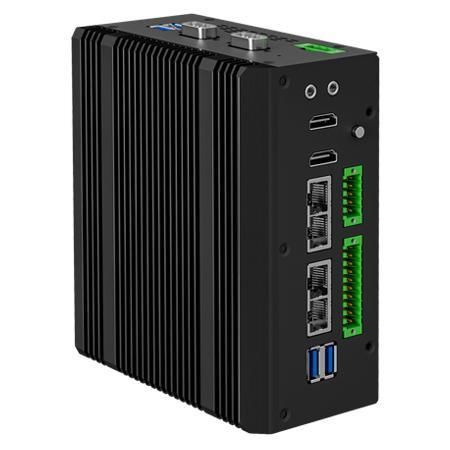

EDGE PC IRDRW500

Edge AIAIbox

Overview
AI-powered DIN-rail Box PC designed for edge AI, machine vision, predictive maintenance and IIoT deployments. Supports optional Hailo-8™ AI accelerator for on-device inference and integrates Intel® Core™ i5-1335U for real-time data processing with low latency and industrial reliability.

Key Features

• Intel® Raptor Lake Core™ i5-1335U (3.3 GHz, up to 4.40 GHz)
• 1 x SO-DIMM DDR5 memory slot, up to 32 GB
• 4 x 2.5 Giga LAN (RJ45); 4 x isolated RS-232/422/485
• USB: 2 x USB 3.2 Gen2, 1 x USB 3.2 Gen1, 1 x USB 2.0
• Isolated DIO: 8-in / 8-out
• Wide-range isolated DC input: 9 V – 36 V
• Wide operating temperature: -20°C to +60°C; fanless design

Product Highlights

• Optional Hailo-8™ AI accelerator module (up to 26 TOPS). Note: WLAN not supported when Hailo-8 is installed.
• Three M.2 slots for Wi‑Fi/Hailo-8 (E-key), NVMe SSD (M-key) and 4G/5G (B-key)
• Rugged aluminum/metal enclosure with RTC-backed timekeeping for reliable event logging

Mechanical & Mounting

• Compact DIN-rail form factor (130 × 68 × 150 mm)
• Standard DIN-rail mount; optional Mini DIN-rail and wall mount kits
• Aluminum and metal housing; fanless passive cooling

Certifications

• CE
• FCC

Accessories (included)

• 100–240V AC to DC adapter
• Power cord
• 20-pin terminal block for DIDO
• 3-pin terminal block for power
• 10-pin terminal block for COM
• Open wire cable
• 3-pin to 2.5Ø female adapter cable
• DIN-rail mount kits

Optional Accessories

• Mini DIN-rail mount kits
• Wall mount kits
• Additional NVMe SSD capacities and memory upgrades

Technical Specifications

• Model: IRDRW500
• Processor: Intel® Core™ i5-1335U (3.3 GHz, up to 4.40 GHz)
• Memory: 1 x SO-DIMM DDR5 4800 MHz — 8GB standard; options: 16GB, 32GB
• Storage: 1 x M.2 2280 M-Key NVMe SSD 256GB (standard); 512GB / 1TB / 2TB optional
• AI Accelerator: Hailo-8™ module up to 26 TOPS (optional); WLAN unavailable when installed
• Ethernet: 4 x Intel® 2.5 Giga Ethernet controllers (RJ45)
• USB: 2 x USB3.2 Gen2 (Type A), 1 x USB3.2 Gen1 (Type A), 1 x USB2.0
• Serial: 4 x isolated RS-232/422/485 (two via 10-pin terminal block selectable by jumper; two via DB9 selectable by BIOS)
• DIDO: 1 x isolated 8-in / 8-out via 20-pin terminal block (2500 VDC isolation on inputs)
• Video: Optional 2 x HDMI 2.0b, up to 4096×2160 @60Hz
• Audio: Mic in, Line out
• SIM: 1 x nano SIM slot (optional)
• Expansion: 1 x M.2 2230 E-key, 1 x M.2 2280 M-key, 1 x M.2 3042/3052 B-key
• Security: TPM 2.0
• Power Input: 1 x isolated 9–36 V DC via 3-pin terminal block; adapter 12V 120W included
• Dimensions: 130 × 68 × 150 mm; Weight: ≈1.5 kg
• Operating Temp: -20°C to 60°C; Storage Temp: -40°C to 70°C; Operating Humidity: 10%–90% RH non-condensing
• Shock/Vibration: MIL-STD-810G options
• Indicator: 1 × LED for power
