UAV ground control station G900AD

Intel® Core i5Linux® Ubuntu™Windows 10 IoT Enterprise

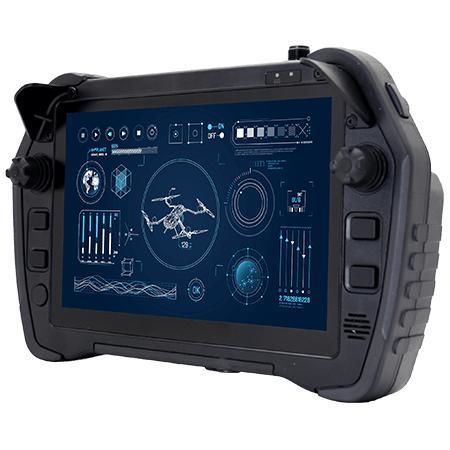

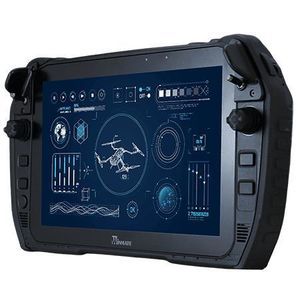

Overview The G900AD handheld robotic controller is a rugged portable controller for industrial and field robotic applications. It integrates an 8-inch sunlight-readable display, Intel® Core™ i5-1235U CPU, modular control elements (joysticks, roller switches, buttons) and multiple wireless options including Wi‑Fi, Bluetooth and optional 4G/5G for real-time control and data connectivity in harsh environments.

Key Features

• 8" 1920 x 1200 IPS display with direct optical bonding and 1000 nits brightness
• Intel® Core™ i5-1235U processor (base 3.3 GHz, up to 4.40 GHz)
• Modular input: configurable 2 × joysticks, 2 × roller switches, 7 × buttons
• Connectivity: Wi‑Fi 802.11a/b/g/n/ac/ax, Bluetooth 5.3, optional WWAN 4G/5G, GNSS (GPS/GLONASS)
• Rugged design: front IP65, MIL‑STD‑810H shock, drop and vibration protection

Certifications

• CE
• FCC

Product Description The G900AD balances portability, ruggedness and computing power for dismounted ground control, robotic controllers, field operations and defense applications. Its modular architecture supports configurable control layouts and interchangeable wireless modules. Removable batteries with optional high-capacity packs enable extended missions. TPM 2.0 is included for hardware security integration.

Technical specifications

• Display: 8.0 inches; Type: Projected Capacitive Multi Touch; Resolution: 1920 x 1200; Brightness: 1000 nits; Contrast: 1000:1; Viewing angles: 85/85/85/85; Optical bonding; Anti-glare touch treatment; Touch modes: Hand/Gloves/Rain
• Processor: Intel® Core™ i5-1235U (up to 4.40 GHz)
• Memory: 8GB DDR5 (expandable to 32GB)
• Storage: M.2 Gen4 256GB SSD (up to 2TB)
• Security: TPM 2.0
• Operating System: Windows 10 IoT Enterprise LTSC (64-bit); optional Windows 11 IoT Enterprise LTSC; optional Linux Ubuntu 22.04
• WLAN: 802.11a/b/g/n/ac/ax; Bluetooth: 5.3; WWAN: optional 4G LTE / 5G; GNSS: GPS/GLONASS
• Mechanical: 259.8 x 166.1 x 44.2 mm; Weight: 1.2 kg; Cooling: fan design
• I/O: 1 × USB 3.0 Type-A; 1 × USB 3.0 Type-C; 1 × M12 LAN connector (mutually exclusive with Microhard RF); 1 × micro HDMI; 1 × speaker
• Control: 2 × joystick; 2 × roller switch; 7 × configurable buttons
• Power: Standard battery 11.4V typ. 3500 mAh removable Li‑Ion; Optional high-capacity 11.4V typ. 4750 mAh; Battery life: ~5.5 hrs (standard), ~7.5 hrs (high-capacity); Power rating: 20V DC; Adapter: 20V/5A PD
• Accessories (standard): PD Adapter 100W; M12 LAN cable; Power cord; Standard battery
• Accessories (optional): Microhard pMDDL2450 (mutually exclusive with LAN); High capacity battery; Battery charger
• Environment: Operating humidity 10%–90% RH non-condensing; Operating temperature -20°C to 60°C (AC), -10°C to 50°C (battery); Storage -30°C to 70°C
• Ruggedness: MIL‑STD‑810H Method 516.8 Procedure I (Shock); Method 514.8 Procedure I (Vibration); IP65 (front)
• Certifications: CE, FCC
