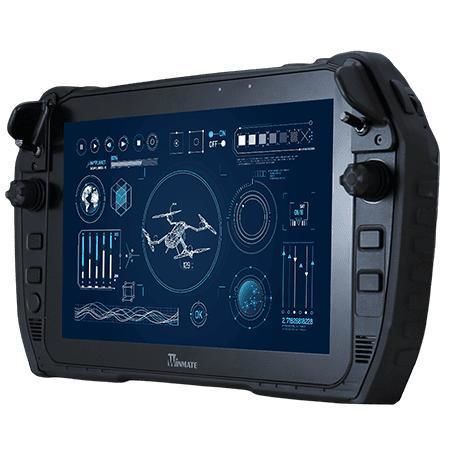

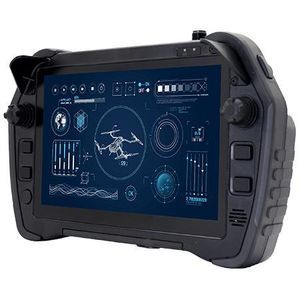

UAV ground control station G101Q9-A

Android 13Linux® Ubuntu™rugged

Key Features

• 10.1" 1920 x 1200 IPS LED panel with direct optical bonding
• Qualcomm® 6490 (Octa‑core 2.7 GHz) processor
• All‑weather, dust and water protection (front IP65); MIL‑grade drop, shock and vibration
• Wi‑Fi, Bluetooth 5.3 and optional 4G/5G
• Hot‑swappable removable battery

Overview
The G101Q9-A handheld rugged robotic controller is designed for field robotics and industrial automation tasks that require mobile computing and reliable I/O. It runs Android 13 (with Linux Ubuntu options) and integrates a high‑brightness bonded display, fanless thermal design and MIL‑STD environmental resistance for operation in harsh conditions.

Connectivity

• WLAN: 802.11a/b/g/n/ac/ax
• Bluetooth: 5.3
• WWAN: optional 4G LTE / optional 5G
• GNSS: GPS / GLONASS

Tailored Configurations
Modular hardware options support configurable joysticks, toggle switches, roller switches and multiple button layouts. M10 LAN connector or Microhard RF module are mutually exclusive options to suit different network requirements.

Certifications

• CE
• FCC

Standard Accessories

• Removable battery (10.9 V, typ. 6700 mAh Li‑Ion)
• 120W adapter (100‑240VAC to 19VDC)
• M10 push‑pull power cable
• M10 push‑pull LAN cable
• Power cord

Technical specifications

• Display: 10.1" P‑CAP multi‑touch, 1920 x 1200, 800 nits, optical bonding, AG+AF
• Processor: Qualcomm® 6490 (Octa‑Core 2.7 GHz)
• Memory / Storage: 8 GB / 128 GB
• OS: Android 13.0 (optional Linux Ubuntu)
• USB: 1 x USB 2.0 Type‑A, 1 x USB 3.0 Type‑C
• Video: 1 x micro HDMI
• LAN: 1 x M10 LAN (or Microhard RF module)
• Audio: 2 x speakers
• Dimensions: 317.75 x 188.87 x 35.8 mm; Weight: 1.4 kg
• Battery: 10.9 V typ. 6700 mAh Li‑Ion (removable), runtime ~10.5 hrs
• Operating temperature: -20°C to 60°C (AC), -10°C to 50°C (battery)
• Shock & Vibration: MIL‑STD‑810H
• Ingress protection: IP65
