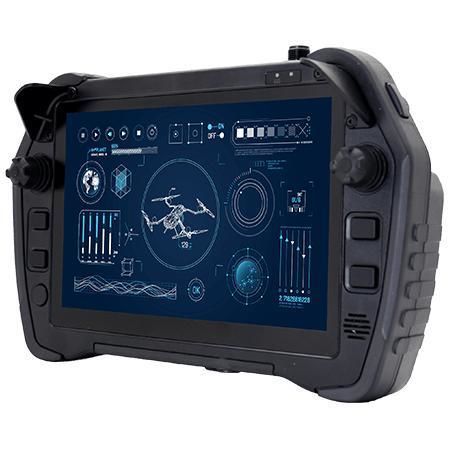

UAV ground control station G900G7

MediaTekARM CortexARM Cortex-A78

Overview
The Winmate G900G7 handheld robotic controller is built for demanding industrial and robotic applications. Powered by a Genio 510 SoC and shipping with Android 13 (Linux/Ubuntu option available), it pairs an 8.0-inch sunlight-readable display with IP65 ingress protection and MIL-grade drop, shock and vibration resistance. The device provides extensive wireless connectivity and a modular control interface designed for integration with robotic systems and automation workflows.

Key Features

• 8.0-inch 1920 x 1200 IPS panel with direct optical bonding
• 4 GB RAM and 64 GB eMMC storage
• Genio 510 SoC: 2 x A78 + 4 x A55 (2.0 GHz)
• Wi‑Fi (802.11a/b/g/n/ac/ax) and Bluetooth 5.3; optional 4G LTE / 5G WWAN
• Sunlight-readable with anti-glare treatment and optical bonding
• Rugged design: IP65 ingress protection; MIL-STD drop, shock and vibration

Certifications

• CE
• FCC

Design & Connectivity
The G900G7 uses a fanless architecture and supports removable Li‑ion batteries for continuous field operation. Connectivity includes 802.11 a/b/g/n/ac/ax Wi‑Fi, Bluetooth 5.3, GNSS (GPS/GLONASS) and optional WWAN (4G/5G). A modular mechanical layout allows configurable joysticks, roller switches and programmable buttons to match control schemes required by robots, vehicles or remote equipment.

Accessories (selected)

• Standard: 100W PD adapter and power cord; BTS101 removable battery (11.4 V, 3500 mAh); M12 LAN external cable
• Optional: High-capacity battery BTS101L (11.4 V, 4750 mAh); BC-S101 dual-bay battery charger; optional Microhard RF module (mutually exclusive with M12 LAN)

Technical specifications

• Display: 8.0 inches, 1920 x 1200, Projected Capacitive Multi-Touch; Panel Brightness: 1000 nits; Contrast: 1000:1; View Angles: 85/85/85/85; Optical bonding; Anti-glare
• Touch modes: Hand / Gloves / Rain support
• Processor: Genio 510 (2 x A78 2.0 GHz + 4 x A55 2.0 GHz)
• Memory & storage: 4 GB RAM; 64 GB eMMC
• OS: Android 13.0 (Linux/Ubuntu option)
• Wireless: WLAN 802.11a/b/g/n/ac/ax; Bluetooth 5.3; Optional WWAN 4G LTE / 5G; GNSS GPS/GLONASS
• Dimensions & weight: 259.8 x 166.1 x 44.2 mm; 1.1 kg
• Cooling: Fanless design
• Ports: 1 x USB 3.0 Type-A, 1 x USB 2.0 Type-C, 1 x M12 LAN connector (mutually exclusive with Microhard RF module), 1 x micro HDMI, 1 x speaker
• Controls: 2 x joysticks, 2 x roller switches, 7 x programmable buttons
• Battery: Standard 11.4 V typ. 3500 mAh removable Li‑Ion (3S1P); Optional 11.4 V typ. 4750 mAh removable
• Battery life: Standard ~5.5 hrs; High-capacity ~7.5 hrs
• Power: 20 V DC; Adapter: 20 V / 5 A (100 W PD)
• Operating conditions: Humidity 10%–90% RH non-condensing; Temp (AC) -20°C to 60°C; Temp (Battery) -10°C to 50°C; Storage -30°C to 70°C
• Ruggedness: Shock MIL-STD-810H Method 516.8 Procedure I; Vibration MIL-STD-810H Method 514.8 Procedure I; IP65
