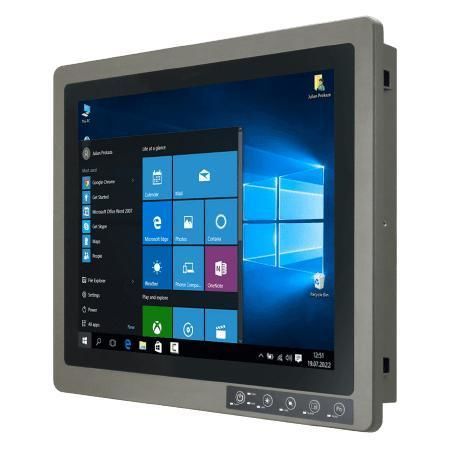

19" panel PC R19IHAT-66EX-T

multi-touch screenPCAP capacitive touch screen1280 x 1024

Overview
The R19IHAT-66EX-T is a 19-inch 1000 nits ATEX panel PC engineered for safe operation in hazardous locations and extreme temperatures. It integrates Intel® 11th Gen Tiger Lake processors (standard Core™ i5-1135G7), a fanless thermal design and an intelligent heater to maintain operation down to -40°C. The unit is suitable for remote data acquisition, process visualization and control in explosion-prone and harsh industrial environments.

Key Features

• 19" 1000 nits LCD ATEX Panel PC
• Class I, Division 2 & ATEX Zone 2 certified for hazardous-area deployment
• Intel® 11th Gen processors (Core™ i5-1135G7 standard; optional i3/i5/i7 variants)
• Fanless design with aluminum housing and EX-type M16/M12 brass cable glands
• Intelligent heater for operation down to -40°C; operating range up to 70°C

Certifications

• CE, FCC
• ANSI/UL 62368-1-2019; CAN/CSA-C22.2 No.62368-1-19; EN 62368-1
• Class I, Div.2, Groups A,B,C,D T4 (ANSI/UL 121201; CAN/CSA C22.2 No.213-17)
• ATEX II 3G Ex ic IIC T4 Gc (EN 60079 series)
• IECEx Ex ec ic IIC T4 Gc (IEC 60079 series)
• MIL-STD-810G
• IP54 (hazardous location) / IP66 (non-hazardous location)

Design Highlights
The product provides sealed protection with EX-type brass cable glands (M16, M12) for wet and dusty conditions, an aluminum enclosure and MIL-STD-810G shock and vibration tolerance. The front panel meets IP66 for non-hazardous installations and IP54 for hazardous installations. Projected capacitive (PCAP) multi-touch bonding ensures reliable touch operation in industrial use.

Additional Product Details
Standard panel-mount installation (VESA optional). Power input 9–36V DC via 3-pin terminal block. I/O glands: 2 x M16 and 3 x M12 EX-type brass cable glands. Accessories available for non-Ex use include AC/DC adapter, power cord, open-wired cables for M12/M16 glands and mounting hardware.

Technical specifications

• Display: 19.0" 1280 x 1024, 1000 nits, contrast 1000:1, active area 376.32 x 301.06 mm
• Dimensions / Cut-out / Weight: 474 x 410 x 111 mm / 462 x 386 mm / 9.8 kg
• Processor options: Intel Core i5-1135G7 (2.4–4.2 GHz); optional i3/i7 variants
• Memory: 1 x SO-DIMM DDR4 3200 MHz 8GB standard (optional up to 64GB)
• Storage: M.2 2280 NVMe SSD 256GB standard; SATA III for 2.5" SSD/HDD optional
• Ethernet: 2 x Intel® controllers; Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise, Windows 11 Pro, Linux Ubuntu 22.04
• I/O: USB, RS232/422/485, LAN terminal blocks and safe-area connectors as specified
• Expansion: M.2 2280 M-Key (NVMe), M.2 2230 E-Key (Wi‑Fi)
• Operating: -40°C to 70°C (with intelligent heater); 5%–95% RH non-condensing
