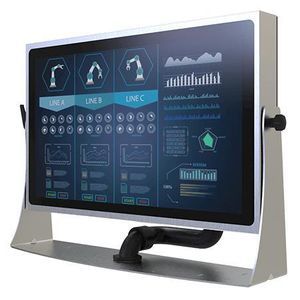

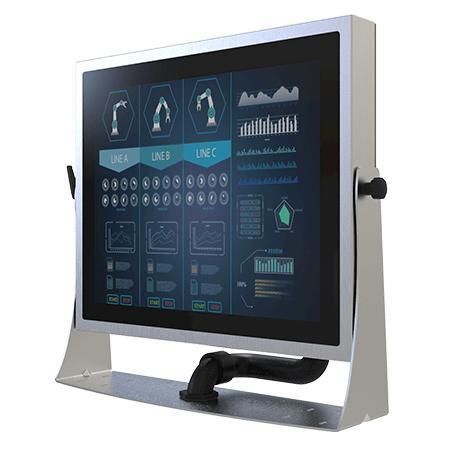

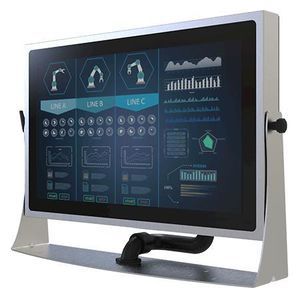

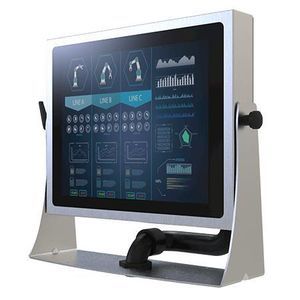

Projected capacitive touchscreen monitor R19L100-SPM169-P1

multitouch screenindustrialfor industrial machines

Overview
19 inch IP69K stainless steel P-Series display for industrial applications in food processing, beverage and chemical plants. Stainless steel enclosure and IP69K rating enable resistance to high-pressure, high-temperature washdowns and strict disinfection procedures.

Key Features

• 19 inch projected capacitive multi-touch (PCAP)
• Fanless cooling system
• SUS 316 / AISI 316 stainless steel housing
• Full IP69K waterproof enclosure
• True flat, edge-to-edge front surface for easy cleaning
• Waterproof sealed conduit pipe pre-installed for cable protection
• Supports VESA mount and Yoke mount stand
• Optical bonding available (optional)

Certifications

• IP69K
• FCC
• CE

Product Highlights
Designed to meet strict hygiene requirements: stainless housing and IP69K protection permit routine high-pressure, high-temperature washdowns and stringent disinfection processes common in food, beverage and chemical environments.

Additional cable protection: pre-installed waterproof conduit pipe protects peripheral cables, improving durability and reducing downtime in production facilities.

Projected Capacitive Touchscreen (PCAP): high-sensitivity multi-touch support enables gestures such as rotate, drag-and-drop and multi-finger zoom for efficient interaction.

Reliable image quality: industrial-grade display modules assembled in controlled environments to ensure consistent visual performance.

Display ports and customization: multiple customization options including product size, customer logo, LCD panel brightness, glass surface treatment, display ports and country-specific power plug selection.

Included Accessories

• 1 x Waterproof Conduit 1.5 m
• 1 x Waterproof Conduit 0.3 m
• 2 x Elbow for conduit connection
• 1 x AC to DC power adapter with power cord
• 1 x External USB cable for touchscreen control
• 1 x External HDMI cable
• 1 x D-sub15 (male) to RJ45 adapter
• 1 x D-sub15 (female) to RJ45 adapter
• 1 x External RJ45 male-to-male cable
• Manual
• VESA screws

Optional Accessories

• Open wire cable for phoenix connector (optional)
• Yoke mount stand kit (optional)

Specifications

• Display — Size: 19 inches
• Display — Touch / Glass: Projected Capacitive Multi Touch Screen
• Display — Resolution: 1280 x 1024
• Display — Panel Brightness: 250 nits
• Display — Contrast Ratio: 1000:1
• Display — View Angles: 85, 85, 80, 80
• Display — Display Color: 16.7M Colors
• Display — Active Area: 376.32 x 301.06 mm
• Mechanical — Dimension: 468 x 395 x 57 mm
• Mechanical — Mounting: VESA Mount; Yoke Mount
• Mechanical — Enclosure: Stainless Housing (SUS 316 / AISI 316)
• Mechanical — Cooling System: Fanless design
• Environment — Operating Humidity: 10% to 90% RH, Non-Condensing
• Environment — Operating Temperature: 0°C to 45°C
• Environment — Storage Temperature: -20°C to 60°C
• Environment — IP rating: IP69K
• Certification — Certification: CE, FCC
• IO Ports — USB Port: 1 x USB Type-A for touch screen control
• IO Ports — Video: 1 x VGA (Default); 1 x HDMI (Optional)
• IO Ports — Indicator: 1 x LED indicator for power; 1 x LED indicator for status
• Control — Buttons: 1 x Power Button; 1 x Adjust up button; 1 x Adjust down button; 1 x ESC (Auto) button; 1 x OK (Menu) button
• Power — Power Rating: 12V DC input
