Projected capacitive touchscreen monitor W22L100-SPA369-P1

multitouch screenindustrialfor industrial machines

Overview

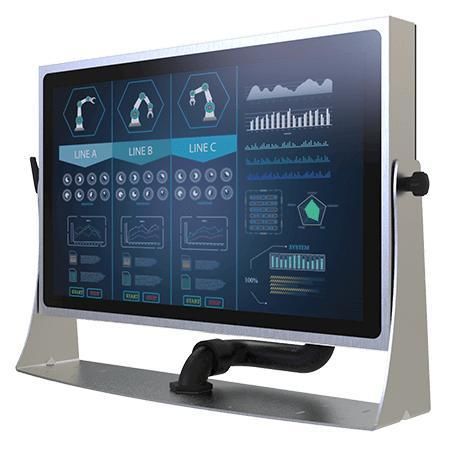

21.5-inch industrial touch display with SUS 316 / AISI 316 stainless steel housing and IP69K rating. Designed for environments requiring frequent high-pressure, high-temperature washdowns and strict hygiene procedures such as food, beverage and chemical production.

Key Features

• Projected capacitive (PCAP) multi-touch screen
• Preinstalled waterproof conduit pipe for cable protection
• SUS 316 / AISI 316 stainless steel enclosure suitable for food and chemical industries
• Full IP69K waterproof protection
• True flat, edge-to-edge front surface for easy cleaning
• Supports VESA and Yoke mounting
• Optional optical bonding

Product Highlights & Description
Hygiene-focused construction: The stainless steel housing combined with IP69K protection allows routine high-pressure, high-temperature cleaning without compromising enclosure integrity.

Conduit pipe for cable protection: A waterproof conduit pipe is provided to shield peripheral cables, reducing exposure-related failures and downtime in production areas.

Projected capacitive touchscreen (PCAP): High-sensitivity multi-touch operation supports common gestures (pinch-to-zoom, rotate, drag-and-drop) for intuitive interaction in industrial HMI workflows.

Display quality and assembly: Industrial-grade display modules are assembled in controlled conditions to ensure consistent color, contrast and viewing angles suitable for 24/7 operations.

Certifications

• IP69K
• CE
• FCC

Accessories (included / optional)

• Included: 1 x Waterproof conduit 1.5 m; 1 x Waterproof conduit 0.3 m; 2 x elbows for conduit; 1 x AC-to-DC power adapter with power cord; 1 x external USB cable (touch control); 1 x external HDMI cable; 1 x D-sub15 (male) to RJ45 adapter; 1 x D-sub15 (female) to RJ45 adapter; 1 x external RJ45 male-to-male cable; Manual; VESA screws
• Optional: Open wire cable for Phoenix connector; Yoke mount stand kit

Specifications

• Display Size: 21.5 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen (PCAP)
• Resolution: 1920 x 1080
• Panel Brightness: 250 nits
• Contrast Ratio: 3000:1
• View Angles: 89/89/89/89
• Display Color: 16.7M Colors
• Active Area: 476.64 x 268.11 mm
• Dimension: 541 x 337 x 56.2 mm
• Mounting: VESA Mount; Yoke Mount
• Enclosure: Stainless Housing (SUS 316 / AISI 316)
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 45°C
• Storage Temperature: -20°C to 60°C
• IP Rating: IP69K
• Certification: CE, FCC
• IO Ports: 1 x USB Type-A (touch control); Video: 1 x VGA (default), 1 x HDMI (optional)
• Indicators: LED power; LED status
• Control Buttons: Power; Adjust Up; Adjust Down; ESC (Auto); OK (Menu)
• Power Rating: 12V DC input
