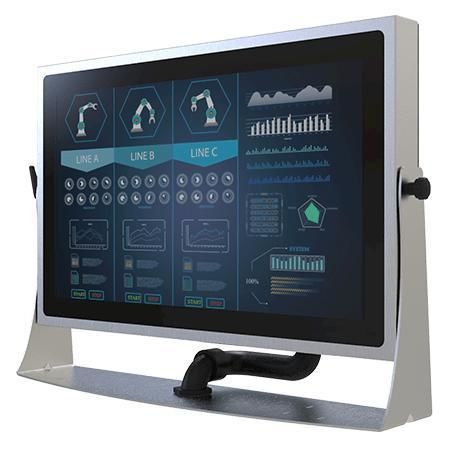

LCD monitor W24L100-SPA269-P1

projected capacitive touchscreenPCAP capacitive touch screenmultitouch screen

Overview
Stainless-steel housed 24-inch industrial touch display designed for environments that require regular high-pressure, high-temperature washdowns and strict disinfection procedures, such as food, beverage and chemical industries. The front is fully sealed to IP69K and includes a pre-installed waterproof conduit for peripheral cable protection.

Extra Protection with Conduit Pipe
Custom-built waterproof conduit pipe is pre-installed to protect exposed peripheral cables, extend service life and reduce production downtime in processing environments.

Projected Capacitive Touchscreen (PCAP)
The projected capacitive touchscreen supports multi-touch gestures including rotate, drag-and-drop and pinch-to-zoom for efficient operator input and interaction.

Image Quality and Assembly
Display modules are assembled in clean-room conditions and controlled production processes deliver consistent image performance suitable for industrial applications.

Display Ports and Customization
Multiple customization options are available: product size, customer logo, LCD panel brightness, glass surface treatment, selection of display ports and country-specific power plug options.

Key Features

• 24” with Projected Capacitive Multi-Touch (PCAP)
• Fanless cooling system; IP69K stainless enclosure
• SUS 316 / AISI 316 stainless steel suitable for food and chemical industries
• Full IP69K waterproof front panel
• True flat edge-to-edge front surface for easy cleaning
• Waterproof sealed conduit pipe for cable protection (pre-installed)
• Supports VESA mount (default) and Yoke mount stand (optional)
• Optical bonding available (optional)

Certifications

• IP69K
• FCC
• CE

Included Accessories

• 1 x Waterproof conduit 1.5m
• 1 x Waterproof conduit 0.3m
• 2 x Elbow for conduit connection
• 1 x AC to DC power adapter with power cord
• 1 x External USB cable for touchscreen control
• 1 x External HDMI cable
• 1 x D-sub15 (male) to RJ45 adapter
• 1 x D-sub15 (female) to RJ45 adapter
• 1 x External RJ45 male-to-male cable
• Manual
• VESA screws

Optional Accessories

• 1 x Open wire cable for phoenix connector (optional)
• Yoke mount stand kit (optional)

Technical specifications

• Size: 24.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 1920 x 1080
• Panel Brightness: 250 nits
• Contrast Ratio: 3000:1
• View Angles: 89, 89, 89, 89
• Display Color: 16.7M Colors
• Active Area: 527.04 x 296.46 mm
• Mechanical Dimension: 620 x 390 x 56 mm
• Weight: 10 Kg
• Mounting: VESA mount (Default); Yoke mount (Optional)
• Enclosure: Stainless Housing (SUS 316 / AISI 316)
• Cooling System: Fanless Design
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 45°C
• Storage Temperature: -20°C to 60°C
• IP rating: IP69K
• Certification: CE, FCC
• IO Ports: 1 x USB Type-A (for touch control)
• Video: 1 x VGA (Default); 1 x HDMI (Optional)
• Indicator: 1 x LED Indicator for power; 1 x LED Indicator for status
• Control Buttons: 1 x Power; 1 x Adjust up; 1 x Adjust down; 1 x ESC (Auto); 1 x OK (Menu)
• Power Rating: 12V DC input
