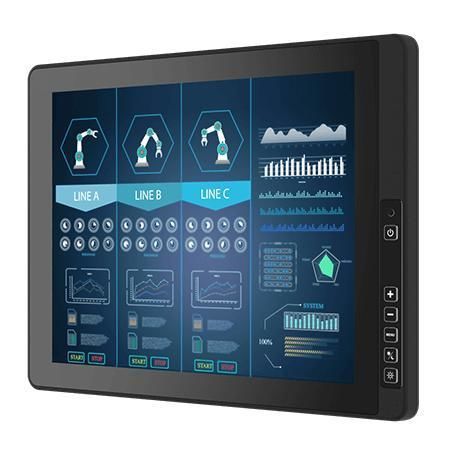

Multitouch screen monitor R15L100-67C3-P(HB)

projected capacitive touchscreen5-wire resistive touch screenindustrial

Overview
Winmate G-WIN IP67 Series 15" P-CAP industrial display R15L100-67C3-P(HB) provides a true flat edge-to-edge touchscreen designed for heavy vehicles and industrial sites. The sealed IP67 enclosure, optical bonding options and corrosion-protected aluminum housing reduce liquid ingress and improve operational durability. Fanless passive cooling and a wide 9-36 V DC input support low-noise operation and flexible installations.

Key Features

• 15" panel, 1024 x 768 resolution, 1000 nits
• P-cap multi-touch with optical bonding (default)
• Optional True Flat 5-wire resistive touch or Anti-Reflective protection glass
• Full IP67 dust/water protection; VESA mount
• Aluminum die-cast housing with anti-corrosion treatment
• Built-in ambient light sensor and Day/Night mode
• Fanless passive cooling
• Wide operating temperature: -10 to 55°C (extendable to -40 to 70°C with intelligent heater)
• Wide DC input 9–36 V with isolation; M12 waterproof power connector

Certifications

• IP67
• CE
• FCC

Technical specifications

• Display - Size: 15.0 inches
• Display - Touch / Glass: Projected Capacitive Multi Touch Screen Bonding With Panel (Default); True Flat Resistive Touch Screen Bonding With Panel (Optional); True Flat Protection Glass Bonding With Panel (Optional)
• Display - Resolution: 1024 x 768
• Display - Panel Brightness: 1000.0 nits
• Display - Contrast Ratio: 2000:1
• Display - View Angles: 88,88,88,88
• Display - Display Color: 16.2M Colors
• Display - Active Area: 304.1 x 228.1 mm
• Mechanical - Dimension: 379.4 x 278.4 x 58 mm
• Mechanical - Weight: 3.8 kg
• Mechanical - Mounting: VESA Mount
• Mechanical - Enclosure: Aluminum Housing; Pre finish: Surtec 650, Type II, Class 3 Coating; Polyester powder coating
• Mechanical - Cooling System: Fanless design (passive cooling)
• Environment - Operating Humidity: 10% to 90% RH, Non-Condensing
• Environment - Operating Temperature: -10°C to 55°C; -40°C to 70°C (with intelligent heater)
• Environment - Storage Temperature: -30°C to 70°C
• Environment - Shock: MIL-STD-810G Method 516.6 Procedure I
• Environment - Vibration: MIL-STD-810G Method 514.6 Procedure I
• Environment - IP rating: IP67
• Certification: CE, FCC
• IO Ports - USB Port: 1 x M12 type connector for Touchscreen via USB signal
• IO Ports - Serial Port: 1 x M12 type connector for Touchscreen via RS232 signal (Optional); 1 x M12 type connector for RS232 Remote Control (Optional)
• IO Ports - Video: 1 x M12 type connector for VGA input; 1 x Waterproof connector for HDMI input
• IO Ports - Indicator: 1 x LED indicator for power; 1 x LED indicator for lock/unlock status
• IO Ports - Power Input: 1 x M12 waterproof connector for 9~36V DC
• Control - Buttons: 1 x Power key; 1 x + key to increase brightness; 1 x - key to decrease brightness; 1 x Menu key (auto/manual brightness adjust); 1 x Day/Night Mode button; 1 x LED indicator brightness adjustment button; Built-in ambient light sensor
• Accessory - Included: External open wire power cable with waterproof connector; External USB cable with waterproof connector for Touch; External VGA cable with waterproof connector; External HDMI cable with waterproof connector; Waterproof caps; VESA screws
• Accessory - Optional: 100~240V AC to DC 50W Adapter with power cord (Optional); External RS232 cable with waterproof connector for Remote Control (Optional)
• Ordering Information - Options: R15L100-67C3-R(HB) for Resistive Touch (Optional); R15L100-67C3-G(HB) for Anti Reflective Protection Glass (Optional)
