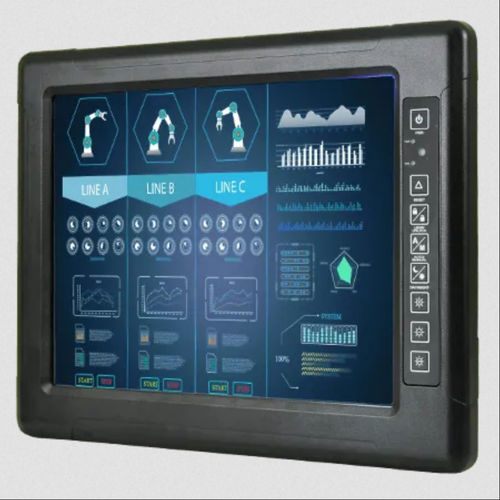

Touch screen monitor R15L100-67C3(HB)

resistive touch screen5-wire resistive touch screenindustrial

Overview
The Winmate 15-inch G-WIN IP67 series display R15L100-67C3(HB) is designed for heavy-duty vehicles and industrial applications. The unit features an easy-to-clean flat aluminum front surface with edge-to-edge design, full IP67 dust and waterproof sealing (including waterproof M12 connectors), fanless cooling and optical bonding with anti-moisture treatment to maintain readability in harsh environments.

Key Features

• 15.0" XGA panel, 1024 x 768 resolution, 1000 nits
• Full IP67 dust and water protection (front and sealed connectors)
• Aluminum die-cast housing with anti-corrosion treatments
• Built-in ambient light sensor
• Optical bonding with anti-moisture treatment
• 5-wire resistive touchscreen (default) / optional protection glass
• Shock and vibration compliance (MIL-STD-810G / IEC standards)
• 9–36V DC isolated wide-range power input via M12 waterproof connector

Certifications

• IP67
• CE
• FCC

Design and Protection
Flat, edge-to-edge aluminum front panel for easy cleaning and liquid resistance. Sealed construction with waterproof M12 connectors for power and signal ensures reliable operation in dusty, wet or washdown environments. Optical bonding and anti-moisture treatments reduce condensation and improve touchscreen durability.

Cooling and Power
Fanless thermal design eliminates dust intake and increases service life in dirty environments. Wide DC input (9–36V isolated) supports vehicle and industrial power systems; M12 waterproof power connector included. Optional AC/DC adapter available.

Ruggedness and Compliance
Aluminum die-cast enclosure and reinforced bonding meet shock and vibration standards for mobile and industrial use (MIL-STD-810G). Operating ranges and optional heater support cold-start conditions.

Technical specifications

• Model: R15L100-67C3(HB)
• Brand: Winmate
• Display size: 15.0 inches
• Touch / Glass: Resistive touch bonding with panel (default); protection glass without touch (optional)
• Resolution: 1024 x 768 (XGA)
• Panel brightness: 1000 nits
• Contrast ratio: 2000:1
• View angles: 88/88/88/88
• Display colors: 16.2M
• Active area: 304.1 x 228.1 mm
• Mechanical dimensions: 398 x 308 x 58 mm
• Weight: 4.2 kg
• Mounting: VESA mount; Yoke mount
• Enclosure: Aluminum housing (die-cast) with anti-corrosion treatment
• Cooling system: Fanless design
• Operating humidity: 10%–90% RH, non-condensing
• Operating temperature: -10°C to 55°C; -40°C to 70°C with intelligent heater (optional)
• Storage temperature: -30°C to 70°C
• Shock: MIL-STD-810G Method 516.6 Procedure I
• Vibration: MIL-STD-810G Method 514.6 Procedure I
• IP rating: IP67
• USB port: 1 x M12 connector for touchscreen via USB
• Serial port: 1 x M12 connector for touchscreen via RS232 (optional)
• Video input: 1 x M12 connector for VGA (default); 1 x waterproof connector for HDMI (optional)
• Indicators: Power LED; Status LED
• Power input: 1 x M12 waterproof connector, 9–36V DC (isolated)
• Control buttons: Power; Adjust up; Adjust down; ESC (Auto); OK (Menu)
• Standard accessories: External open-wire power cable with waterproof connector; external USB and VGA cables with waterproof connectors; waterproof caps; VESA screws; driver CD & manual
• Optional accessories: Yoke mount stand; 100–240V AC to DC 50W adapter; external COM/HDMI cables with waterproof connectors
