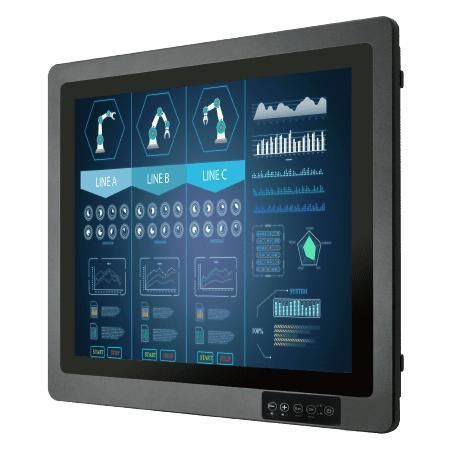

Multi-touch screen monitor R19L100-67FTP(HB)

projected capacitive touchscreenindustrialfor industrial machines

Overview
The Winmate 19-inch G-WIN IP67 series industrial display R19L100-67FTP(HB) is engineered for heavy-duty vehicles and harsh industrial environments. It features a fully sealed IP67 aluminum housing, projected capacitive multi-touch bonded panel, wide operating temperature range and a fanless thermal design for reliable operation in demanding conditions.

Key Features

• Fully sealed IP67 aluminum compact housing
• 19-inch 1280 x 1024 panel with projected capacitive (P-Cap) multi-touch
• Wide operating temperature: -10 to 55°C (expandable to -40 to 70°C with intelligent heater)
• Fanless enclosure for dust-free cooling and improved reliability
• Rugged front anti-impact construction with optical bonding and anti-moisture treatment
• Front membrane control keys lockable by software
• IP67-rated connectors (M12) with external waterproof cables

Certifications

• IP67
• FCC
• CE

Product Details

• Easy-to-clean flat surface: Edge-to-edge flat aluminum display resists water and droplet ingress and simplifies maintenance.
• Full IP67 protection: Dust- and waterproof construction with M12 waterproof connectors for industrial deployments.
• Fanless cooling: Eliminates internal fans to prevent dust circulation and extend service life in dirty environments.
• Wide DC power range: Supports 9–36 VDC input to accommodate vehicle and industrial power systems.
• Shock & vibration: Compliance with MIL-STD-810G (shock/vibration); aluminum die-cast housing and bonded touchscreen increase robustness.

Technical specifications

• Model: R19L100-67FTP(HB)
• Touch / Glass: Projected Capacitive Multi Touch Screen bonded with panel
• Size: 19.0 inches
• Resolution: 1280 x 1024
• Panel Brightness: 400 nits (standard); 1000 nits (optional sunlight-readable)
• Contrast Ratio: 1000:1
• View Angles: 85 / 85 / 80 / 80
• Display Color: 16.7M Colors
• Active Area: 376.32 x 301.06 mm
• Mechanical Dimension: 474 x 410 x 111 mm
• Cut out: 462 x 386 mm
• Weight: 9.8 kg
• Mounting: Panel mount; VESA mount
• Enclosure: Aluminum housing (die-cast)
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: -10°C to 55°C; -40°C to 70°C with intelligent heater
• Storage Temperature: -30°C to 70°C
• Shock: MIL-STD-810G Method 516.6 Procedure I
• Vibration: MIL-STD-810G Method 514.6 Procedure I
• IP Rating: IP67
• Certification: CE, FCC
• USB Port: 1 x M12 type connector for touchscreen via USB signal
• Serial Port: 1 x M12 type connector for RS232 (optional)
• Video: 1 x M12 type connector for VGA input (default); 1 x waterproof connector for HDMI input (optional)
• Indicator: 1 x LED power; 1 x LED status
• Power Input: 1 x M12 waterproof connector for 9 ~ 36V DC
• Control Buttons: Power; Adjust up; Adjust down; ESC (Auto); OK (Menu)
• Accessories included: External open-wire power cable with waterproof connector; external USB cable with waterproof connector; external VGA cable with waterproof connector; waterproof caps; driver CD & manual; mounting clips; VESA screws
• Optional accessories: 100~240V AC to DC 50W adapter with power cord; external COM cable with waterproof connector (optional); external HDMI cable with waterproof connector (optional)
