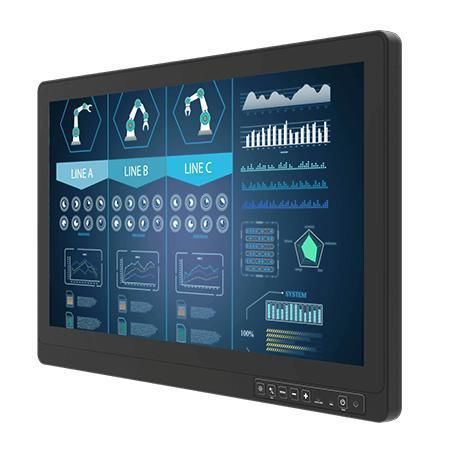

Touch screen monitor W22L100-67B2-P(HB)

multitouch screenmulti-touch screenprojected capacitive touchscreen

Overview
The W22L100-67B2-P(HB) is a 21.5-inch IP67-rated rugged P-CAP multi-touch display designed for industrial, vehicle-mounted and outdoor applications. It provides Full HD 1920 x 1080 resolution, 1000 nits high brightness, optical bonding options and an aluminum die-cast housing treated for corrosion resistance. The product supports wide temperature ranges and a 9–36 V DC isolated input for demanding environments.

Key Features

• 21.5" Full HD panel, 1920 x 1080, 1000 nits
• Projected capacitive (P-CAP) multi-touch with optical bonding to improve clarity
• Optional anti-reflective protection glass bonded to panel
• Fully sealed IP67 construction with VESA mounting
• Aluminum die-cast enclosure with anti-corrosion finish
• Built-in ambient light sensor and hardware brightness controls
• Wide operating temperature: -10 to 55°C (optional heater: -40 to 55°C)
• Wide 9–36 V DC isolated input suitable for vehicle and industrial power systems

Certifications

• IP67 ingress protection
• CE
• FCC

Highlights and Practical Benefits
True flat, edge-to-edge design
Flat bezel simplifies cleaning and reduces liquid ingress points.

Full dust and water protection
Sealed IP67 design enables use in harsh industrial, marine and outdoor conditions.

Fanless cooling and low power
Passive cooling reduces noise and improves reliability in continuous operation.

Versatile power and vehicle options
Supports 9–36 V DC with isolation; optional ignition on/off delay and vehicle-ready connectors.

Rugged mechanical design
Aluminum housing with anti-corrosion treatment and mechanical design certified for shock and vibration resistance.

IO & Controls (summary)

• USB: 1x M12 connector for touchscreen (USB)
• Serial: 1x M12 connector for RS232 remote control (optional)
• Video: 1x M12 connector for VGA; 1x waterproof connector for HDMI
• Indicators: LED for power and LED for lock/unlock status
• Power input: 1x M12 waterproof connector for 9–36 V DC (isolated)
• Controls: power, brightness +/-, menu (auto/manual), day/night mode, LED indicator brightness, ambient light sensor

Accessories (included / optional)

• Included/available: external open-wire power cable with waterproof connector; external USB cable with waterproof connector for touch; external VGA and HDMI cables with waterproof connectors; waterproof caps; VESA screws
• Optional: 100–240 V AC to DC 50W adapter with power cord; external COM cable with waterproof connector

Applications
Industrial automation HMIs, vehicle-mounted systems (fleet and transportation), outdoor and marine displays, military/defense installations, laboratories and medical equipment requiring rugged waterproof displays.

Technical specifications

• Model: W22L100-67B2-P(HB)
• Commercial name: 21.5" G-WIN IP67 Series P-CAP Display
• Display size: 21.5 inches
• Resolution: 1920 x 1080
• Brightness: 1000 nits
• Contrast ratio: 1000:1
• Viewing angles: 89/89/89/89
• Colors: 16.7M
• Active area: 476.64 x 268.11 mm
• Touch/Glass: P-CAP bonded (default); true flat protection glass bonding (optional)
• Dimensions (W x H x D): 529.6 x 342.8 x 58 mm
• Weight: 8.67 kg
• Mounting: VESA
• Enclosure: Aluminum, Surtec 650 pre-finish, polyester powder coating
• Cooling: Fanless
• Operating humidity: 10%–90% RH non-condensing
• Operating temp: -10°C to 55°C; -40°C to 55°C with heater
• Storage temp: -30°C to 70°C
• Shock: MIL-STD-810G Method 516.6 Proc I
• Vibration: MIL-STD-810G Method 514.6 Proc I
• IP rating: IP67
• Certifications: CE, FCC
• USB port: 1x M12 (touch via USB)
• Serial port: 1x M12 RS232 (optional)
• Video inputs: 1x M12 VGA; 1x waterproof HDMI
• Indicator LEDs: power, lock/unlock
• Power input: 1x M12 waterproof 9~36 V DC (isolated)
• Control buttons: power, +, -, menu, day/night, LED brightness adjust; ambient light sensor
• Accessories: power/USB/VGA/HDMI cables with waterproof connectors; waterproof caps; VESA screws
• Optional accessories: AC-DC 50W adapter (100–240 V); external COM cable with waterproof connector
• Ordering option: W22L100-67B2-G(HB) for anti-reflective protection glass (optional)
