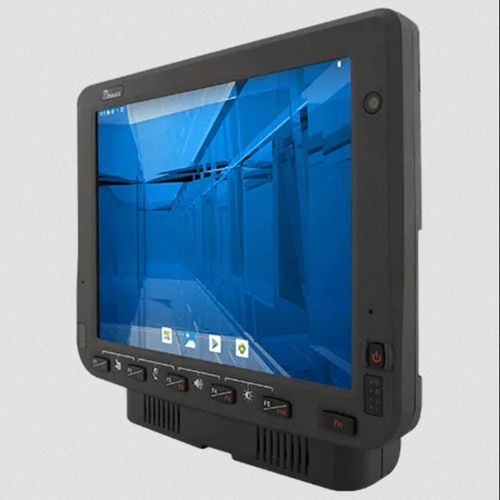

10.4" vehicle-mount computer FM10MG

MediaTek Genio 510MIL-STD-810GMIL-STD-810H

Overview
FM10MG is a 10.4" Android vehicle-mounted computer designed for industrial vehicles and forklifts. It features a 10.4" 1024 x 768 PCAP touchscreen, ARM Genio 510 CPU, field-replaceable front panel and a rugged build meeting IP65 and MIL‑STD‑810H requirements. Designed for wide operating temperatures and flexible vehicle power management, the FM10MG supports multiple mounting options (RAM / VESA) and a detachable docking station for rapid installation and service.

Key Features

• ARM Genio 510 (2 x A78 2.0GHz + 4 x A55 2.0GHz)
• 10.4" 1024 x 768 panel with PCAP multi-touch (hand, glove, stylus)
• Field-replaceable front panel and fanless design
• IP65 front protection; MIL‑STD‑810H shock & vibration compliance
• Wide operating temperature: -30°C to 60°C; ignition‑controlled docking power (10V–60V)

Certifications

• MIL‑STD‑810H / MIL‑STD‑810G (as noted)
• IP65
• FCC
• CE

Mounting 1 – No Drill Solution
No. | Component | RAM Mount Part Number | Description | QTY
A | RAM Clamp Mounts - on the forklift | RAM-D-247U-4 | Clamp base with 2.25” Ball | 1
B | RAM Arm | RAM-D-201U | Arm for 2.25” Ball (L: 8.375”) | 1
C | RAM Ball on the device side | RAM-D-2461U | 75x75mm VESA with 2.25” Ball | 1
C-1 | Screw | - | SUS304 M5 x 12mm Screw | 5
C-2 | Washer | - | M5 Washer | 5

Mounting 2 – Drill Solution
No. | Component | RAM Mount Part Number | Description | QTY
A1 | RAM round base mounts - on the forklift | RAM-D-202U | 3.68" Round Base with 2.25" Ball | 1
A1-1 | Screw | - | SUS304 M8 x 40mm Screw | 5
B | RAM Arm | RAM-D-201U | Arm for 2.25” Ball (L: 8.375”) | 1
C | RAM Ball on the device side | RAM-D-2461U | 75x75mm VESA with 2.25” Ball | 1
C-1 | Screw | - | SUS304 M5 x 12mm Screw | 5
C-2 | Washer | - | M5 Washer | 5

Mounting 3 – Keyboard Mounting Installation
No. | Component | RAM Mount Part Number | Description | QTY
D | Winmate Keyboard adapter plate (PN:821009131600) | - | 4 VESA Holes to device and 4 AMPS holes to RAM Ball | 1
D-1 | Screw | - | SUS304 M5 x 20mm Screw | 5
D-2 | Washer | - | M5 Washer | 5
E | RAM Ball on the sloped part of the keyboard adapter plate | RAM-D-202U | 2.5" Round Base with 1.5" Ball | 1
E-1 | Screw | - | SUS304 M4 x 14mm Screw | 5
E-2 | Washer | - | M4 Washer | 5
F | RAM Arm | RAM-D-201U | Arm for 1.5" Ball (Length: 5.6") | 1
G | RAM Ball on the sloped part of the keyboard adapter plate | RAM-D-202U | 2.5" Round Base with 1.5" Ball | 1

Notes
Installation methods and included parts vary by ordered model and configuration. Guide images are samples and may differ from the actual product.

Technical specifications

• Display: 10.4 in; 1024 x 768; PCAP multi-touch; brightness 400 nits (standard) / 800 nits (optional); contrast 1200:1; view angles 88/88/88/88.
• Processor: ARM Genio 510 (2 x A78 2.0GHz + 4 x A55 2.0GHz).
• Memory / Storage: 4 GB RAM; onboard 64 GB storage.
• OS: Android 13 (default); options: Linux Yocto 5.10.104 (Qt 5.15) or Ubuntu 22.04.
• Wireless & Positioning: WLAN (internal antenna default / external optional); Bluetooth; WWAN 4G/LTE optional; GNSS optional.
• Sensors: G-sensor, light sensor, temperature sensor.
• Camera: Front 2MP.
• Mechanical: Tablet 268 x 214 x 35 mm; Docking 202 x 245 x 52 mm; docking housing aluminum alloy; tablet/dock weight 1.6 kg each; mount: RAM / VESA; fanless cooling.
• IO: Tablet: 1 x USB 2.0 Type-C (OTG), microSD, dual-nano SIM; Dock: DB9 connector for 2 x USB 2.0, 2 x COM, 1 x Gigabit LAN, 2 x speakers, CANBus or Audio option; SMA connectors for external antennas.
• Indicators: 5 LEDs (WLAN, BT, UPS battery, screen blanking, heater).
• Environment: Operating humidity 5–95% RH non-condensing; temp -30°C to 60°C; storage -30°C to 60°C; shock/vibration MIL‑STD‑810H; IP65; impact EN62262 IK07; ESD EN 61000‑4‑2 enhanced.
• Power: UPS battery 7.6V (2S1P) ~30 min; docking input 10–60V with ignition control; tablet 12V DC in.
• Security & Management: SOTI MobiControl compatible.
• Accessories: Selected standard and optional accessories include power cable with fuse, USB cable, power converter cable, 84W adapter, external antenna brackets, stylus kit, RS232/CAN cables, IP65 LAN cable, antennas and mounting parts.
