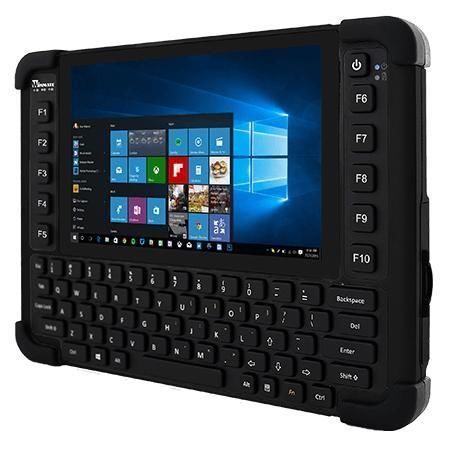

Windows 10 IoT Enterprise tablet M101EKB

Windows 11 IoT Enterprise8"Intel® Pentium® N6415

Overview
The M101EKB is an 8-inch Windows rugged tablet PC engineered for industrial and vehicle-mounted use. It integrates an Intel® Elkhart Lake Celeron® N6211 processor with fanless cooling for stable performance and reduced power draw. The device supports Windows IoT Enterprise, offers optional WWAN (4G/5G), and includes a removable hot‑swappable battery for continuous operation.

Key features

• Intel® Elkhart Lake Celeron® N6211 (Pentium N6415 optional)
• 8.0" 1280 x 800 wide‑angle display with PCAP multi‑touch (≥10 points)
• ISO/IEC 9995‑3 QWERTY keypad with LED backlight and 10 programmable function keys
• USB Type‑C port supporting Power Delivery (20V IN)
• IP65 enclosure and MIL‑STD‑810H rugged housing
• Fanless design for low power consumption
• Removable hot‑swap battery (standard and high‑capacity options)
• Integrated wireless: Wi‑Fi, Bluetooth, optional 4G/5G WWAN; GNSS (GPS/GLONASS/Galileo/BeiDou)

Certifications

• CE
• FCC
• TELEC

Product highlights

• Projected capacitive (PCAP) multi‑touch with Hand / Glove / Rain / Stylus modes and minimum 10‑point support
• Rugged construction: rubber bumpers, covered I/O, shock/vibration/drop resistance per MIL‑STD‑810H (drop up to 4 ft)
• Real‑time connectivity and data capture: optional LTE/5G, Wi‑Fi, Bluetooth, GNSS and rear 8MP camera with AF and LED

Applications

• Warehouse logistics, direct store delivery and vehicle‑mounted computing (e.g., forklifts)
• Field service, utilities, transportation and fleet management
• Manufacturing, public safety and other harsh‑environment industrial uses

Technical specifications

• Model: M101EKB
• Brand: Winmate
• Display Size: 8.0 inches
• Resolution: 1280 x 800
• Display Type: Projected Capacitive Multi Touch (PCAP)
• Panel Brightness: 800 nits
• Contrast Ratio: 1500:1
• Viewing Angles: 80/80/80/80
• Bonding: Optical bonding for sunlight viewability
• Touch Modes: Hand / Gloves / Rain / Stylus
• Processor: Intel Celeron N6211 @ 1.20 GHz (up to 3.00 GHz) default; Intel Pentium N6415 optional
• Memory: 4GB default; 8GB optional
• Storage: 128GB SSD default; micro SDXC slot; 256GB/512GB SSD optional
• Smart Card Reader: optional
• Security: TPM 2.0, Kensington Lock
• Operating System: Windows 11 IoT Enterprise LTSC (64‑bit) default; Windows 10 IoT Enterprise LTSC optional
• WLAN: 802.11 a/b/g/n/ac
• Bluetooth: BT 4.0 / BT 5.x as specified
• WWAN: Optional 4G / Optional 5G
• GNSS: GPS, GLONASS, Galileo, BeiDou
• RFID: Optional HF 13.56 MHz; optional UHF add‑on
• Sensors: Light sensor, G‑sensor, Gyro
• Operating Humidity: 10% to 90% RH, non‑condensing
• Operating Temperature: -20°C to 60°C
• Storage Temperature: -30°C to 70°C
• Shock/Vibration/Drop: MIL‑STD‑810H certified (drop up to 4 ft)
• IP Rating: IP65
• Certifications: CE, FCC, TELEC
• Dimensions: 271.8 x 198.2 x 22 mm
• Weight: 1.35 kg (approx. 3 lbs)
• Cooling System: Fanless
• USB Ports: 1 x USB 3.0 Type‑A; 1 x USB 3.0 Type‑C (PD 20V IN)
• Video Output: 1 x Micro HDMI (optional)
• Audio: 1 x 3.5mm combo jack; dual digital mics with noise cancellation; dual speakers
• SD Card Slot: 1 x Micro SD (SDXC)
• SIM Card Slot: 1 x SIM
• Expansion: 1 x expansion connector (optional)
• Indicators: 4x LEDs (Power, Battery, HDD, RF)
• Docking Connector: 1 x 19‑pin
• Battery: Hot‑swappable 7.7V typ. 5900 mAh Li‑Polymer standard; optional 7.4V typ. 10280 mAh high‑capacity
• Battery Life: Standard ~8 hours; High capacity ~13 hours
• Power Rating: 19V DC (adapter 100‑240V 50‑60Hz → 19V DC)
• Rear Camera: 8MP with autofocus and LED
• Barcode Scanner: Optional 1D/2D reader
• Physical Buttons: ISO/IEC 9995‑3 QWERTY keypad (IP65, LED backlight), 1 x Power, 10 x programmable Function Keys
• Accessories (examples): Desk Dock, Vehicle Dock/Cradle, Battery Charger, Smart Card Reader, High Capacity Battery, Hand Strap, VESA Mount Kit, Shoulder Strap, Carry Bag, Vehicle Charger
